18-802 CMW
Part #: 290-18-802
Request 3D Model
The NU-TWIST Surface Mount Holder is the complete assembly. This compact holder is great for welding at pressures greater than 2,000 lbs where standard tapers are damaged. The flat bottom electrodes are easily removed by rotating the locking nut.
RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.
- The electrode seats at a height of 1.813 IN from the bottom of the base.
- The part holds a Size 2 NU-TWIST electrode
- The base width is 1.5 IN
- The base length is 2.5 IN
- The part includes the Adapter Nut, Base, O-ring, and Hose Barbs.

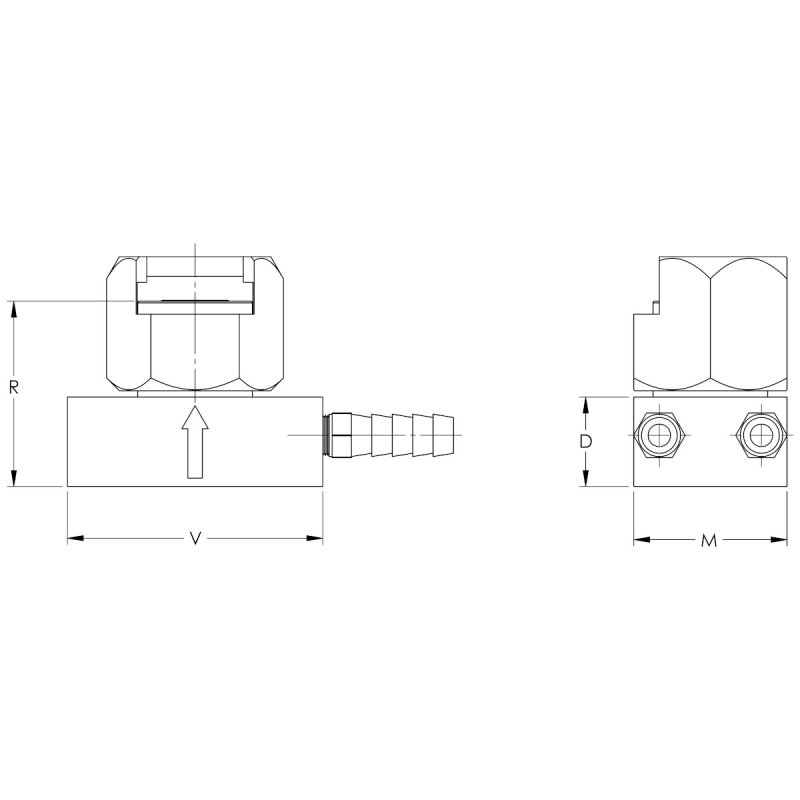

Specifications
RWMA Material Type | RWMA Class 2 |
---|---|
Mounting Screws | 1/4-20 Cap Screws |
NU-TWIST Tip Size | Size 2 NU-TWIST |
Height of Tip from Base [P] | 1.81250 |
Base Length [V] | 2.50 |
Base Width [M] | 1.50000 |
Base Thickness [D] | 0.88 |
Unit of Measure | IN |
O-ring Included | Yes |
