338054 CMW

Part #: 275-338054

Request 3D Model

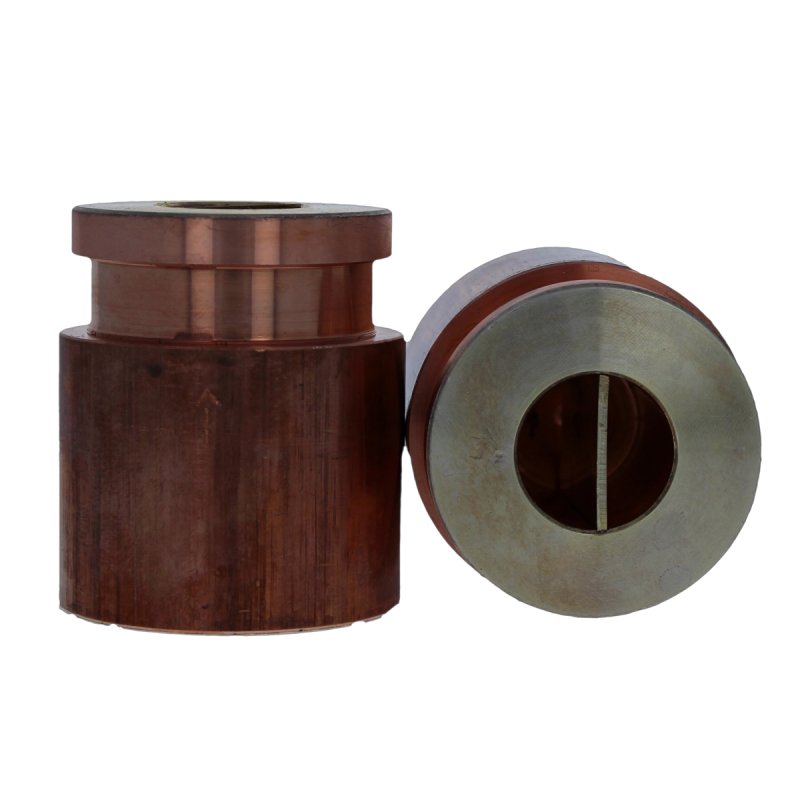

NU-TWIST Electrodes have a flat bottom which allows for welding at forces greater than 2,000 LBS. The parts are designed for use with Nu-Twist holders. The double groove construction accurately positions the electrode by rotating the Nu-Twist Nut.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.000 IN
The outside diameter of the electrode base is 1.625 IN
The part mounts to Size 4 high pressure NU-TWIST holder via a threaded coupling
The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
The weld face is 1.75 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
NU-TWIST Tip Size	Size 4
Nose Type	C
Overall Length [A]	2.00000
Electrode Seat Diameter [H]	1.62500
Welding Face Dia. [C]	1.75
Water Hole Diameter [E]	1.75000
Water Hole Depth [F]	1.500
Stickout from Adapter [L]	1.5000
Unit of Measure	IN
