950 Series Holder Subassembly

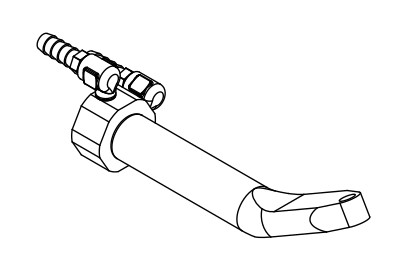

CMW 950 Series Barrel Subassembly

The 950 Series Paddle Holder is designed for welding in tight spaces. The Paddle Holder has a 30 degree bend. The holder is typically used with a 30 degree bend T-Connector. This allows the tooling to reach around the work piece and still be perpendicular to the weld. The part can be used with any Rocker Arm or Pedestal Type Welder.

The head with a threaded socket only requires 23/32 IN of clearance.

Part Description RWMA Material Type For Electrode Type For Holder Type Barrel Dia. [E] Unit of Measure
219-18-713
18-713 CMW RWMA Class 2 Threaded Socket Tip 950 Series 1.00000 IN
219-18-714
18-714 CMW RWMA Class 2 Threaded Socket Tip 950 Series 1.25000 IN
219-18-715
18-715 CMW RWMA Class 2 Threaded Socket Tip 950 Series 1.50000 IN
219-18-716
18-716 CMW RWMA Class 2 Threaded Socket Tip 950 Series 1.00000 IN
18-713 CMW 18-714 CMW 18-715 CMW 18-716 CMW
