950 Series Holder Assembly

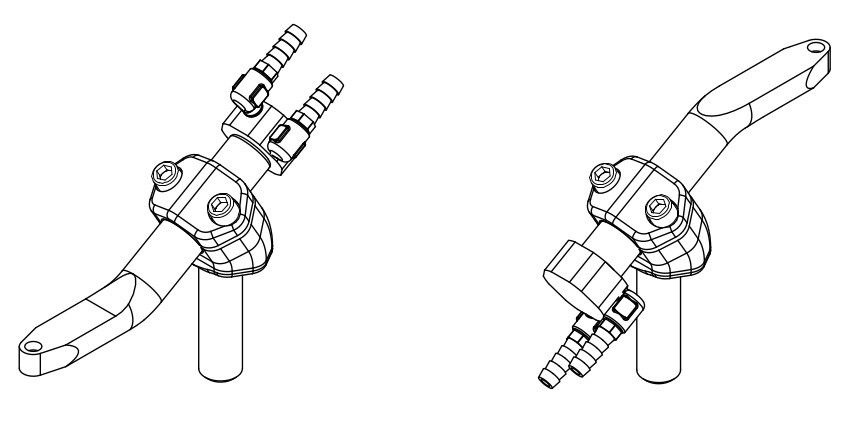

The 950 Series Paddle Holder Assembly is designed for welding in tight spaces. The assembly includes T-Connector with a 30 degree bend and a Paddle Holder with a 30 degree bend. This allows the tooling to reach around the work piece and still be perpendicular to the weld. The part can be used with any Rocker Arm or Pedestal Type Welder.
The Paddle Holder can be adjusted in the X and Y direction. The head with a threaded socket only requires 23/32 IN of clearance.
| Part | Description | RWMA Material Type | Tee Connector Shaft Dia. [J] | For Electrode Type | Barrel Dia. [E] | Tee Connector Shank Length [G] | Unit of Measure | Bend Angle |
|---|---|---|---|---|---|---|---|---|
| 219-18-952 | 18-952 CMW | RWMA Class 2 | 0.875 | Threaded Socket Tip | 1.00000 | 3.000 | IN | 30.0 |
| 235-18-953 | 18-953 CMW | RWMA Class 2 | 1 | Threaded Socket Tip | 1.00000 | 3.000 | IN | 30.0 |
| 235-18-954 | 18-954 CMW | RWMA Class 2 | 1.25 | Threaded Socket Tip | 1.25000 | 3.500 | IN | 30.0 |
| 235-18-955 | 18-955 CMW | RWMA Class 2 | 1.5 | Threaded Socket Tip | 1.50000 | 4.000 | IN | 30.0 |
