900 Series Light Duty Assembly

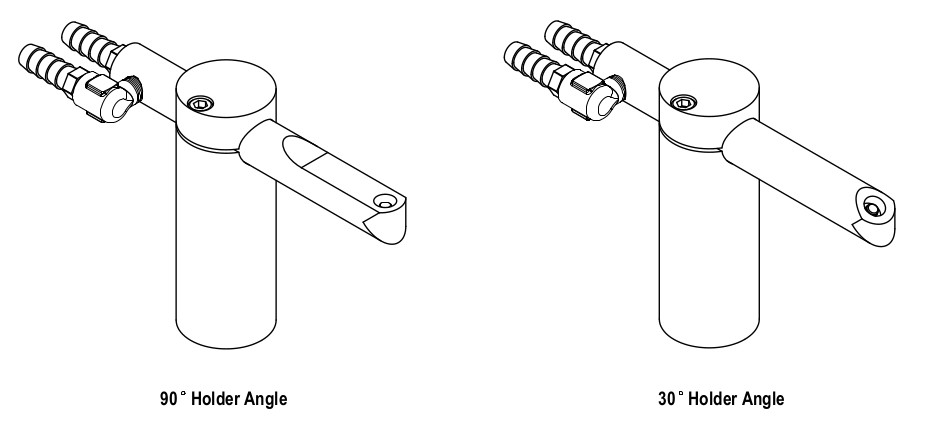

The 900 Series Light Duty Assembly is designed for welding where space is a premium. The assembly includes a T-connector and a Paddle Holder. The part is designed for use with any Rocker Arm or Pedestal Type Welder.
The threaded socket electrode seat into the tip of the holder and only requires 3/16 IN clearance for use.
| Part | Description | RWMA Material Type | Tee Connector Shaft Dia. [J] | For Electrode Type | Barrel Length | Barrel Dia. | Tee Connector Shank Length | Unit of Measure | Electrode Engagement Angle |
|---|---|---|---|---|---|---|---|---|---|
| 219-18-906 | 18-906 CMW | RWMA Class 2 | 1 | Threaded Socket Tip | 5.75000 | 0.75000 | 3.000 | IN | 30.0 |
| 235-18-900 | 18-900 CMW | RWMA Class 2 | 1.5 | Threaded Socket Tip | 5.75000 | 0.75000 | 3.000 | IN | 30.0 |
| 235-18-905 | 18-905 CMW | RWMA Class 2 | 1 | Threaded Socket Tip | 5.75000 | 0.75000 | 3.000 | IN | 90.0 |
| 235-18-907 | 18-907 CMW | RWMA Class 2 | 1.25 | Threaded Socket Tip | 5.75000 | 0.75000 | 3.000 | IN | 90.0 |
| 235-18-908 | 18-908 CMW | RWMA Class 2 | 1.25 | Threaded Socket Tip | 5.75000 | 0.75000 | 3.000 | IN | 30.0 |
| 235-18-909 | 18-909 CMW | RWMA Class 2 | 1.5 | Threaded Socket Tip | 5.75000 | 0.75000 | 3.000 | IN | 90.0 |
