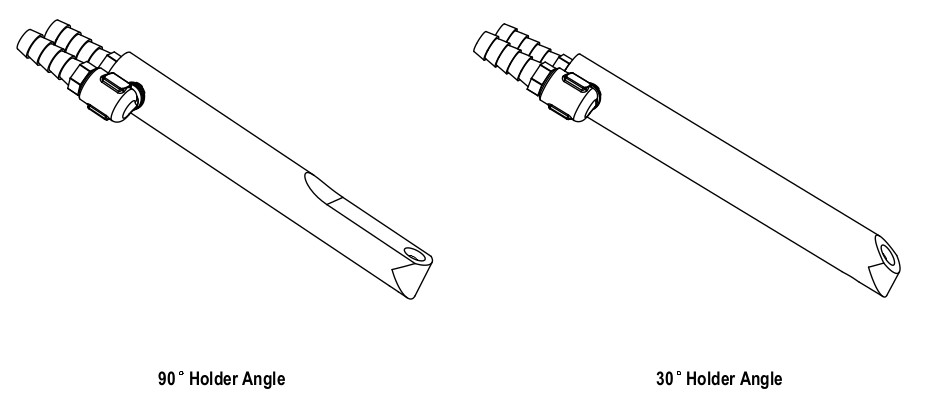

900 Series Barrel Subassembly
The 900 Series Barrel Subassembly is designed for welding where space is a premium. The threaded socket electrode seat into the tip of the holder and only requires 3/16 IN clearance for use.
| Part | Description | RWMA Material Type | For Electrode Type | For Holder Type | Barrel Length [A] | Barrel Dia. [B] | Unit of Measure | Electrode Engagement Angle [D] |
|---|---|---|---|---|---|---|---|---|
| 219-18-709 | 18-709 CMW | RWMA Class 2 | Threaded Socket Tip | 900 Series Holder | 5.75000 | 0.75000 | IN | |
| 219-18-710 | 18-710 CMW | RWMA Class 2 | Threaded Socket Tip | 900 Series Holder | 5.75000 | 0.75000 | IN | 30.0 |
