600 Series Universal Holder

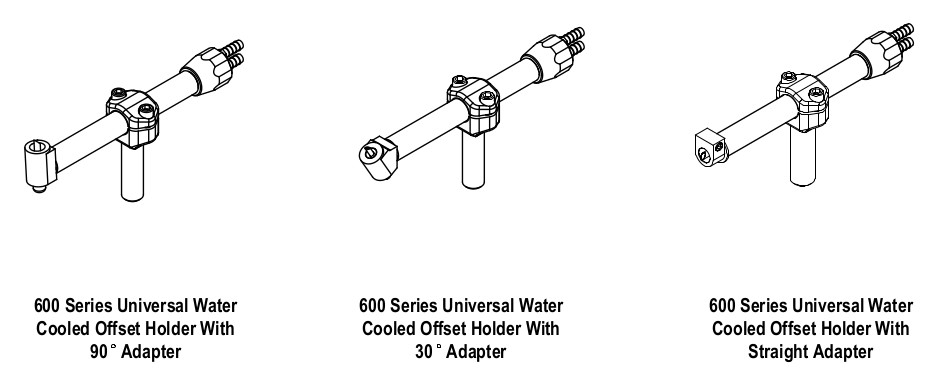

The 600 Series Universal Holder Assembly is a water cooled electrode holder assembly for rocker arm welders. The assembly includes a Tee-Connector, Straight Holder, Water Connector Head, and an Electrode Adapter. The system provides the necessary components to make any welder more versatile.
| Part | Description | Tee Connector Shaft Dia. [J] | RWMA Taper [T] | Barrel Length | Barrel Dia. [E] | Tee Connector Shank Length [G] | Unit of Measure | Adapter Engagement Angle | Ejector Type | Adapter Threads | Adapter Included |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 235-18-613 | 18-613 CMW | 1 | 5RW | 8.00000 | 1.00000 | 3.000 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-766 |
| 219-18-6545 | 18-6545 CMW | 1.5 | 5RW | 8.00000 | 1.50000 | 4.000 | IN | 30.0 | Yes | 1 - 14 | 290-18-7815 |
| 219-18-656 | 18-656 CMW | 1.25 | 5RW | 8.00000 | 1.50000 | 4.000 | IN | 30.0 | Yes | 1 - 14 | 290-18-781 |
| 219-18-658 | 18-658 CMW | 1.5 | 5RW | 8.00000 | 1.25000 | 4.000 | IN | 30.0 | Yes | 1 - 14 | 290-18-781 |
| 219-18-672 | 18-672 CMW | 1.5 | 5RW | 8.00000 | 1.50000 | 4.000 | IN | 180.0 | No | 1 - 14 | 230-18-784 |
| 219-18-674 | 18-674 CMW | 1.5 | 5RW | 8.00000 | 1.25000 | 4.000 | IN | 180.0 | No | 1 - 14 | 230-18-784 |
| 235-18-603 | 18-603 CMW | 1 | 4RW | 8.00000 | 1.00000 | 3.000 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-764 |
| 235-18-604 | 18-604 CMW | 1 | 4RW | 8.00000 | 1.00000 | 3.000 | IN | 30.0 | Yes | 7/8 - 14 | 230-18-765 |
| 235-18-605 | 18-605 CMW | 1.25 | 4RW | 8.00000 | 1.25000 | 3.500 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-764 |
| 219-18-654 | 18-654 CMW | 1.5 | 5RW | 8.00000 | 1.50000 | 4.000 | IN | 30.0 | Yes | 1 - 14 | 290-18-781 |
| 235-18-614 | 18-614 CMW | 1 | 5RW | 8.00000 | 1.00000 | 3.000 | IN | 30.0 | Yes | 7/8 - 14 | 290-18-767 |
| 235-18-615 | 18-615 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-766 |
| 235-18-651 | 18-651 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 90.0 | Yes | 1 - 14 | 295-18-780 |
| 235-18-653 | 18-653 CMW | 1.5 | 5RW | 8.00000 | 1.50000 | 4.000 | IN | 90.0 | Yes | 1 - 14 | 295-18-780 |
| 235-18-655 | 18-655 CMW | 1.25 | 5RW | 8.00000 | 1.50000 | 4.000 | IN | 90.0 | Yes | 1 - 14 | 295-18-780 |
| 235-18-657 | 18-657 CMW | 1.5 | 5RW | 8.00000 | 1.25000 | 4.000 | IN | 90.0 | Yes | 1 - 14 | 295-18-780 |
| 235-18-671 | 18-671 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 180.0 | No | 1 - 14 | 230-18-784 |
| 235-18-673 | 18-673 CMW | 1.25 | 5RW | 8.00000 | 1.50000 | 4.000 | IN | 180.0 | No | 1 - 14 | 230-18-784 |
| 219-18-618 | 18-618 CMW | 1.5 | 5RW | 8.00000 | 1.25000 | 4.000 | IN | 30.0 | Yes | 7/8 - 14 | 290-18-767 |
| 219-18-602 | 18-602 CMW | 0.875 | 4RW | 8.00000 | 1.00000 | 3.000 | IN | 30.0 | Yes | 7/8 - 14 | 230-18-765 |
| 219-18-606 | 18-606 CMW | 1.25 | 4RW | 8.00000 | 1.25000 | 3.500 | IN | 30.0 | Yes | 7/8 - 14 | 230-18-765 |
| 219-18-607 | 18-607 CMW | 1.5 | 4RW | 8.00000 | 1.50000 | 4.000 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-764 |
| 219-18-608 | 18-608 CMW | 1.5 | 4RW | 8.00000 | 1.25000 | 4.000 | IN | 30.0 | Yes | 7/8 - 14 | 230-18-765 |
| 219-18-611 | 18-611 CMW | 0.875 | 5RW | 8.00000 | 1.00000 | 3.000 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-766 |
| 219-18-612 | 18-612 CMW | 0.875 | 5RW | 8.00000 | 1.00000 | 3.000 | IN | 30.0 | Yes | 7/8 - 14 | 290-18-767 |
| 219-18-616 | 18-616 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 30.0 | Yes | 7/8 - 14 | 290-18-767 |
| 219-18-617 | 18-617 CMW | 1.5 | 5RW | 8.00000 | 1.25000 | 4.000 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-766 |
| 219-18-601 | 18-601 CMW | 0.875 | 4RW | 8.00000 | 1.00000 | 3.000 | IN | 90.0 | Yes | 7/8 - 14 | 290-18-764 |
| 219-18-621 | 18-621 CMW | 0.875 | 5RW | 8.00000 | 1.00000 | 3.000 | IN | 180.0 | No | 7/8 - 14 | 290-18-768 |
| 219-18-622 | 18-622 CMW | 1 | 5RW | 8.00000 | 1.00000 | 3.000 | IN | 180.0 | No | 7/8 - 14 | 290-18-768 |
| 219-18-623 | 18-623 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 180.0 | No | 7/8 - 14 | 290-18-768 |
| 219-18-624 | 18-624 CMW | 1.5 | 5RW | 8.00000 | 1.25000 | 4.000 | IN | 180.0 | No | 7/8 - 14 | 290-18-768 |
| 219-18-6515 | 18-6515 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 90.0 | Yes | 1 - 14 | 290-18-7805 |
| 219-18-652 | 18-652 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 30.0 | Yes | 1 - 14 | 290-18-781 |
| 219-18-6525 | 18-6525 CMW | 1.25 | 5RW | 8.00000 | 1.25000 | 3.500 | IN | 30.0 | Yes | 1 - 14 | 290-18-7815 |
