18-31910-12 CMW

Part #: 001-18-31910-12

Request 3D Model

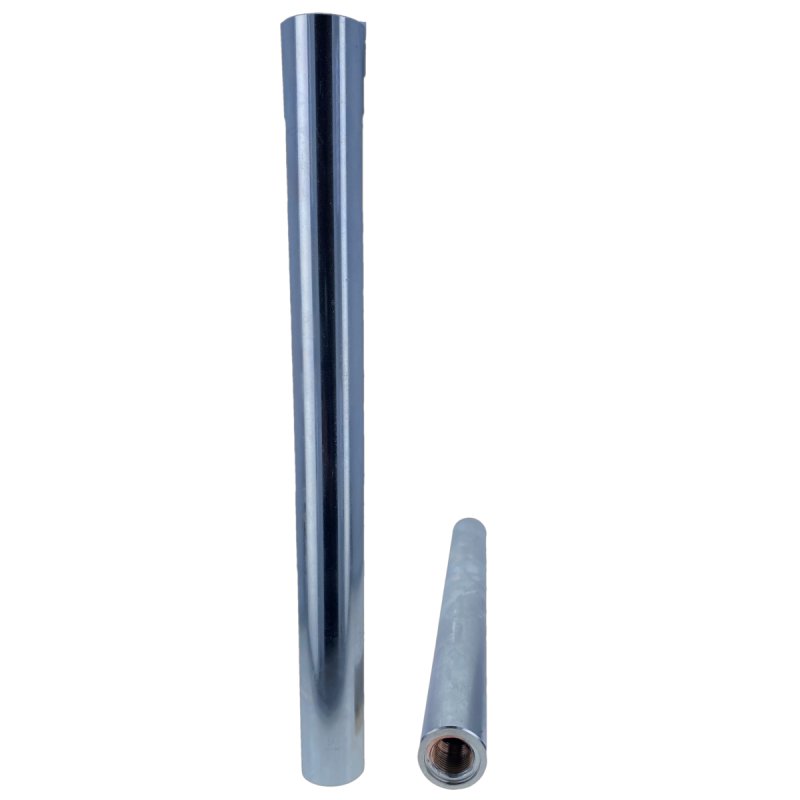

The 100, 200, and 300 Series Straight Holders have a modular design that allows users to modify the holder to fit the application. The Replacement Barrels can be purchased to change the length, taper, or diameter of their current holder. All holders are nickel plated for wear resistance.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

The overall length is 12.000 IN
The outside diameter is 1.250 IN
The part has 3/4 - 16 threads for a Water Connector Head.
The part holds a subcomponent via a 7RW standard taper which is suitable for weld forces ranging between 2,000 to 2,400 pounds of force.
The part is nickel plated to protect against corrosion.

Specifications

RWMA Material Type	RWMA Class 2
Threads for Water Connector Head [Z]	3/4 - 16
Electrode or Adapter Engagement [T]	7RW
Holder Series Type	300 Series
Barrel Length [A]	12.00000
Barrel Dia. [B]	1.25000
Unit of Measure	IN
Nickel Plating	Yes
