Adapter Assemblies

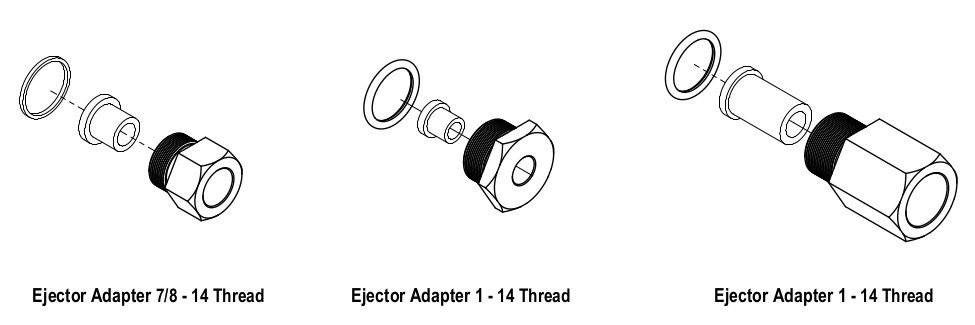

Adapter Assemblies for Straight Holders are designed for use with CMW straight holders. The assembly contains an o-ring and a knockout plug for Ejector Style holders.
| Part | Description | RWMA MaterialType | Engagement to Holder | RWMA Taper | Overall Length | Hex Width | Thread Length | Body Length | Unit of Measure | O-ring Included | Thread Type |
|---|---|---|---|---|---|---|---|---|---|---|---|
| 290-18-7702 | 18-7702 CMW | RWMA Class 2 | 7/8 - 14 | 4RW | 0.81300 | 1.00000 | 0.6250 | 0.1563 | IN | Yes | Male |
| 290-18-7712 | 18-7712 CMW | RWMA Class 2 | 7/8 - 14 | 5RW | 1.06300 | 1.00000 | 0.5000 | 0.5625 | IN | Yes | Male |
| 290-18-7743 | 18-7743 CMW | RWMA Class 2 | 1 - 14 | 5/8 - 18 | 1.00000 | 1.25000 | 0.6250 | 0.3750 | IN | Yes | Male |
| 290-18-7852 | 18-7852 CMW | RWMA Class 2 | 1 - 14 | 4RW | 0.81300 | 1.25000 | 0.5625 | 0.2500 | IN | Yes | Male |
| 290-18-7862 | 18-7862 CMW | RWMA Class 2 | 1 - 14 | 5RW | 1.06300 | 1.25000 | 0.4375 | 0.6250 | IN | Yes | Male |
| 290-18-7864 | 18-7864 CMW | RWMA Class 2 | 1 - 14 | 6RW | 1.75000 | 1.25000 | 0.7500 | 1.0000 | IN | Yes | Male |
| 290-18-7872 | 18-7872 CMW | RWMA Class 2 | 1 - 14 | 7RW | 2.12500 | 1.25000 | 0.7500 | 1.3750 | IN | Yes | Male |
