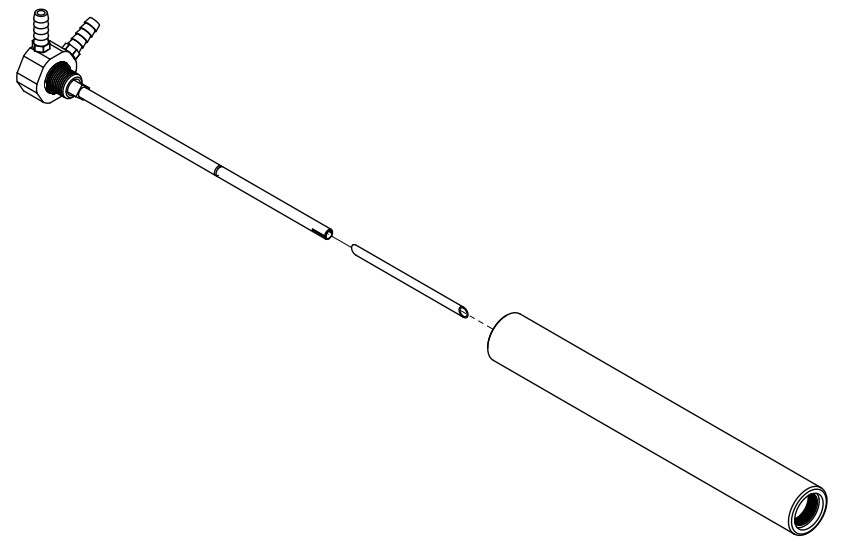

100 Series Holder Assembly
100 Series Straight Holders are simple Non-Ejector syle holders. The holders have adjustable water tubes to maximize cooling of the tip which maximizes tip life. Straight holders are designed for use with Rocker Arm and Pedestal Type welders.
The holders are available with a threaded adapter to exended the life of the holder by allowing users to replace the taper when it is worn out.
The holders are nickel plated for corrision resistance.
| Part | Description | RWMA Material Type | Electrode or Adapter Engagement [T] | Barrel Length [F] | Barrel Dia. [E] | Unit of Measure | For Use with Adapter | Nickel Plating | Angle Between Hose Barbs |
|---|---|---|---|---|---|---|---|---|---|
| 219-18-120 | 18-120 CMW | RWMA Class 2 | 7RW | 8.00000 | 1.50000 | IN | No | Yes | 60 |
| 219-18-176 | 18-176 CMW | RWMA Class 2 | 1 - 14 | 8.00000 | 1.50000 | IN | Yes | Yes | 60 |
| 219-18-175 | 18-175 CMW | RWMA Class 2 | 1 - 14 | 8.00000 | 1.25000 | IN | Yes | Yes | 60 |
| 219-18-174 | 18-174 CMW | RWMA Class 2 | 7/8 - 14 | 8.00000 | 1.50000 | IN | Yes | Yes | 60 |
| 219-18-173 | 18-173 CMW | RWMA Class 2 | 7/8 - 14 | 8.00000 | 1.25000 | IN | Yes | Yes | 60 |
| 219-18-172 | 18-172 CMW | RWMA Class 2 | 7/8 - 14 | 8.00000 | 1.00000 | IN | Yes | Yes | 60 |
| 219-18-171 | 18-171 CMW | RWMA Class 2 | 5/8-11 | 8.00000 | 1.50000 | IN | Yes | Yes | 60 |
| 219-18-170 | 18-170 CMW | RWMA Class 2 | 5/8-11 | 8.00000 | 1.25000 | IN | Yes | Yes | 60 |
| 219-18-169 | 18-169 CMW | RWMA Class 2 | 5/8-11 | 8.00000 | 1.00000 | IN | Yes | Yes | 60 |
| 219-18-138 | 18-138 CMW | RWMA Class 2 | 5RW | 12.00000 | 1.50000 | IN | No | Yes | 60 |
| 219-18-137 | 18-137 CMW | RWMA Class 2 | 5RW | 12.00000 | 1.25000 | IN | No | Yes | 60 |
| 219-18-136 | 18-136 CMW | RWMA Class 2 | 5RW | 12.00000 | 1.00000 | IN | No | Yes | 60 |
| 219-18-134 | 18-134 CMW | RWMA Class 2 | 4RW | 12.00000 | 1.25000 | IN | No | Yes | 60 |
| 219-18-133 | 18-133 CMW | RWMA Class 2 | 4RW | 12.00000 | 1.00000 | IN | No | Yes | 60 |
| 219-18-132 | 18-132 CMW | RWMA Class 2 | 4RW | 12.00000 | 0.87500 | IN | No | Yes | 60 |
| 219-18-131 | 18-131 CMW | RWMA Class 2 | 4RW | 12.00000 | 0.75000 | IN | No | Yes | 60 |
| 219-18-101 | 18-101 CMW | RWMA Class 2 | 4RW | 3.00000 | 0.75000 | IN | No | Yes | 60 |
| 219-18-119 | 18-119 CMW | RWMA Class 2 | 7RW | 8.00000 | 1.25000 | IN | No | Yes | 60 |
| 219-18-118 | 18-118 CMW | RWMA Class 2 | 5RW | 8.00000 | 1.50000 | IN | No | Yes | 60 |
| 219-18-117 | 18-117 CMW | RWMA Class 2 | 5RW | 8.00000 | 1.25000 | IN | No | Yes | 60 |
| 219-18-116 | 18-116 CMW | RWMA Class 2 | 5RW | 8.00000 | 1.00000 | IN | No | Yes | 60 |
| 219-18-114 | 18-114 CMW | RWMA Class 2 | 4RW | 8.00000 | 1.25000 | IN | No | Yes | 60 |
| 219-18-113 | 18-113 CMW | RWMA Class 2 | 4RW | 8.00000 | 1.00000 | IN | No | Yes | 60 |
| 219-18-112 | 18-112 CMW | RWMA Class 2 | 4RW | 8.00000 | 0.87500 | IN | No | Yes | 60 |
| 219-18-111 | 18-111 CMW | RWMA Class 2 | 4RW | 8.00000 | 0.75000 | IN | No | Yes | 60 |
| 219-18-108 | 18-108 CMW | RWMA Class 2 | 5RW | 3.00000 | 1.50000 | IN | No | Yes | 60 |
| 219-18-107 | 18-107 CMW | RWMA Class 2 | 5RW | 3.00000 | 1.25000 | IN | No | Yes | 60 |
| 219-18-106 | 18-106 CMW | RWMA Class 2 | 5RW | 3.00000 | 1.00000 | IN | No | Yes | 60 |
| 219-18-104 | 18-104 CMW | RWMA Class 2 | 4RW | 3.00000 | 1.25000 | IN | No | Yes | 60 |
| 219-18-103 | 18-103 CMW | RWMA Class 2 | 4RW | 3.00000 | 1.00000 | IN | No | Yes | 60 |
| 219-18-102 | 18-102 CMW | RWMA Class 2 | 4RW | 3.00000 | 0.87500 | IN | No | Yes | 60 |
