18-0520-12 CMW

Part #: 295-18-0520-12

Request 3D Model

Standard Platen Mount (PM) holders are designed to mount directly to the planten of a Standard Press welder. The compact design allows for multiple holders to be installed on the platen which makes special fixture building easy.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

The part height (from the base to the electrode) is 2.38 IN
The width of base is 2.0 IN
The holder mounts to a planten via 3/4 IN mounting bolts in the T-Slots.
The part holds a subcomponent via 1 - 14 threaded Electrode Adapter
The length of the base is 7.0 IN
The thickness of the base is 0.62 IN
The size is PM2.
The part is nickel plated to protect against corrosion.

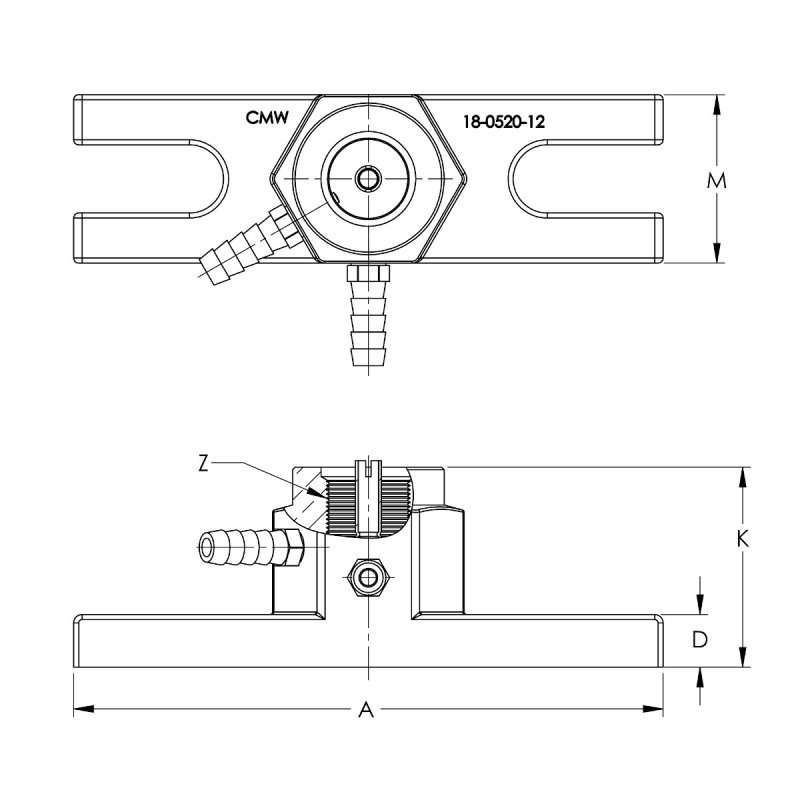

Specifications

RWMA Material Type	RWMA Class 2
PM Size	2
Mounting Bolt Size	3/4 IN mounting bolts
Adapter Engagement [Z]	1 - 14
Overall Height [K]	2.37500
Base Length [A]	7.00
Base Width [M]	2.00000
Base Thickness [D]	0.63
Unit of Measure	IN
Nickel Plated	Yes
