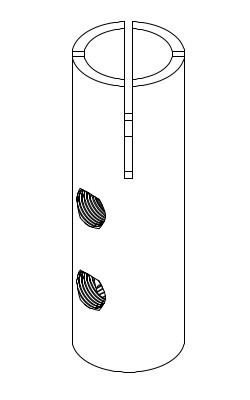

Straight Holder
Multi-Spot Welder Straight Barrel Holders are designed to mount directly to air or hydraulic acutators making them ideal for multi-head resistance welding equipment. The replaceable threaded adapter and water tube can be sized to the application and insure proper water flow to the tips.
| Part | Description | RWMA Material Type | Diameter for Piston [P] | Thread for Adapter [Z] | Overall Length [A] | Outside Diameter [E] | Unit of Measure |
|---|---|---|---|---|---|---|---|
| 294-18-120101 | 18-120101 CMW | RWMA Class 2 | 0.75 | 1/2 - 14 NPT | 3.50000 | 1.12500 | IN |
