Multi-Spot Holder Assembly

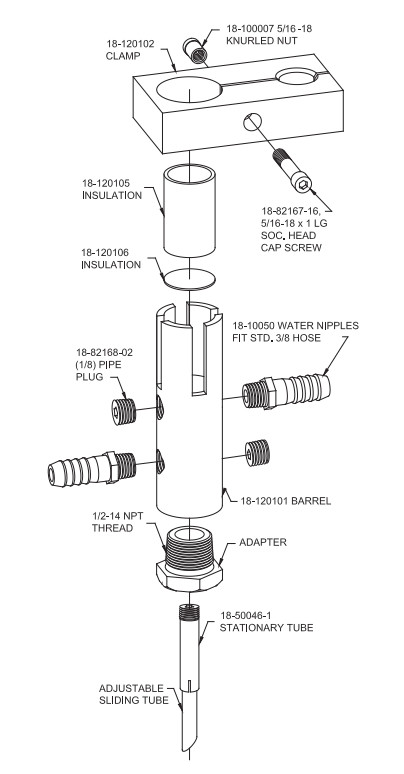

Cylinder Mounted Holdlers mount direclty to air or hydraulic cylinder pistons. They are ideal for assembly special multi-head resistance welding equipment. Current and coolant are brought directly to each individual holder.
| Part | Description | RWMA Material Type | Diameter for Piston [P] | Thread or Taper [Z/T] | Overall Length [A] | Outside Diameter of Str. Holder [E] | Clamp Thickness [D] | Diameter of Welding Cable Socket [X] | Unit of Measure |
|---|---|---|---|---|---|---|---|---|---|
| 294-18-1201 | 18-1201 CMW | RWMA Class 2 | 0.75 | 1/2 - 14 NPT | 3.25000 | 1.12500 | 0.75000 | 0.625 | IN |
| 294-18-1202 | 18-1202 CMW | RWMA Class 2 | 0.75 | 5RW Male Cap Taper | 3.25000 | 1.12500 | 0.75000 | 0.625 | IN |
| 294-18-1203 | 18-1203 CMW | RWMA Class 2 | 0.75 | 4RW | 3.25000 | 1.12500 | 0.75000 | 0.625 | IN |
| 294-18-1204 | 18-1204 CMW | RWMA Class 2 | 0.75 | 5RW | 3.25000 | 1.12500 | 0.75000 | 0.625 | IN |
