18-7805 CMW

Part #: 290-18-7805

Request 3D Model

Request 3D Model

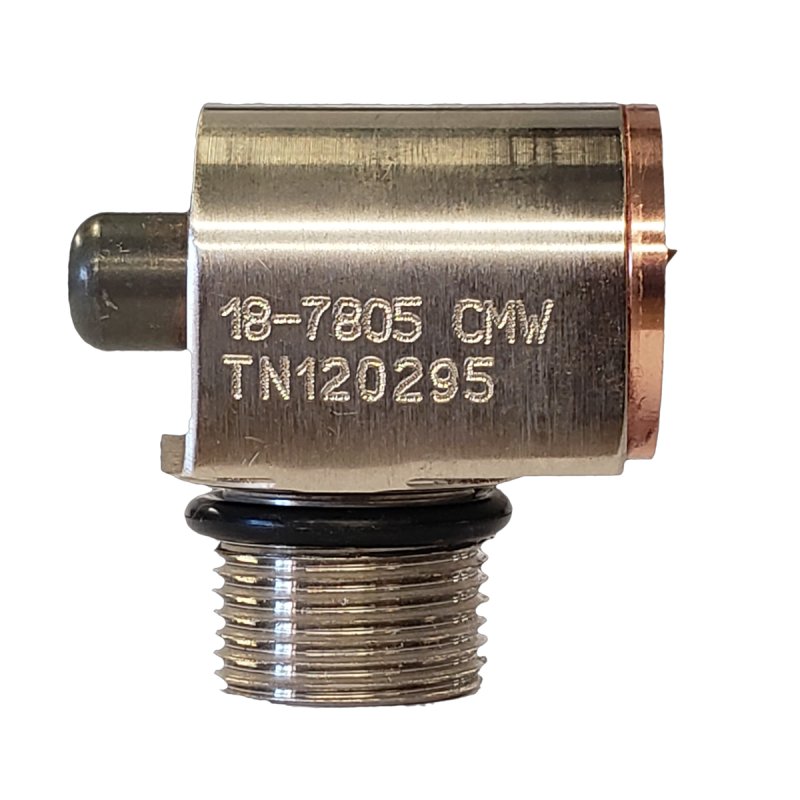

Electrode Angle Adapters are used to improve the holder life and flexibility by allowing users to select different angles for tooling setups. The adapter can also be replaced when the taper wears out. The parts are desinged for use CMW Straight Holders.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 2.000 IN
  • The part width is 1.250 IN
  • The part mounts via 1 - 14 male threads.
  • The part holds a subcomponent via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The offset is 0.656 IN
  • The engagement angle is 90 Degrees
  • The part is nickel plated to protect against corrosion.
  • Ejector Type Part


RWMA Material Type RWMA Class 2
Engagement to Holder 1 - 14
RWMA Taper 5RW
Overall Length 2.56300
Offset 0.6560
Thread Length 0.7500
Body Length 1.4380
Body Width 1.25000
Unit of Measure IN
Engagement Angle 90.0
Ejector Type Yes
Adapter Included Yes
O-ring Included Yes
Thread Type Male
