18-757-09 CMW

Part #: 290-18-757-09

Request 3D Model

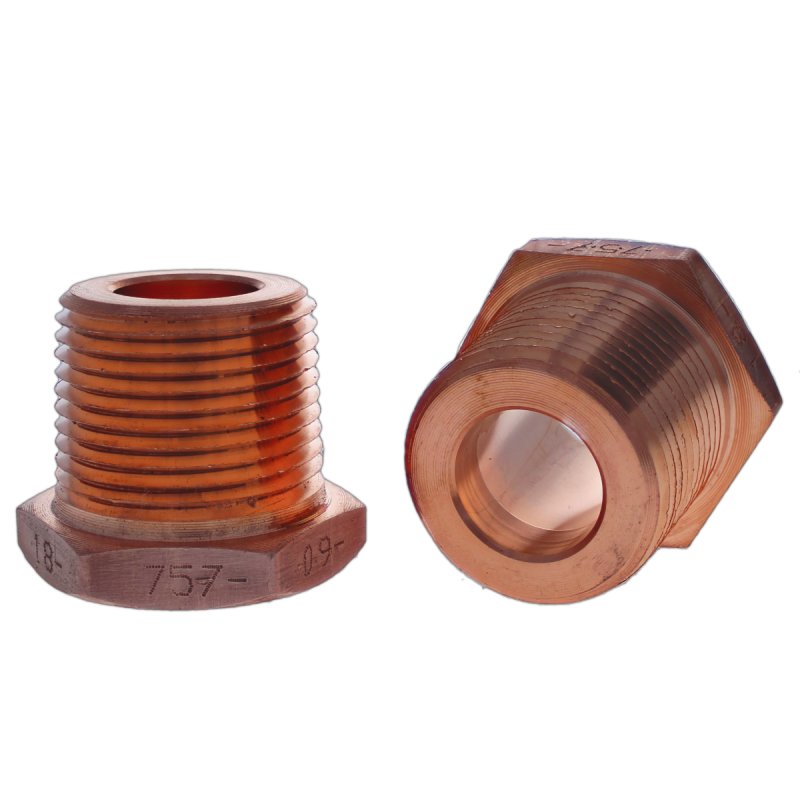

Electrode Adapters are used to improve electrode holder life and flexibility by allowing the adapter to be replaced when the taper wears out.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

The overall length is 1.125 IN
The hex width is 1.250 IN
The part mounts via 3/4 - 14 NPT threads.
The part holds a subcomponent via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The taper or thread length is 0.875 IN

Specifications

RWMA Material Type	RWMA Class 2
Engagement to Holder	3/4 - 14 NPT
RWMA Taper	5RW
Overall Length	1.12500
Hex Width	1.25000
Thread Length	0.8750
Body Length	0.2500
Unit of Measure	IN
Thread Type	Male
