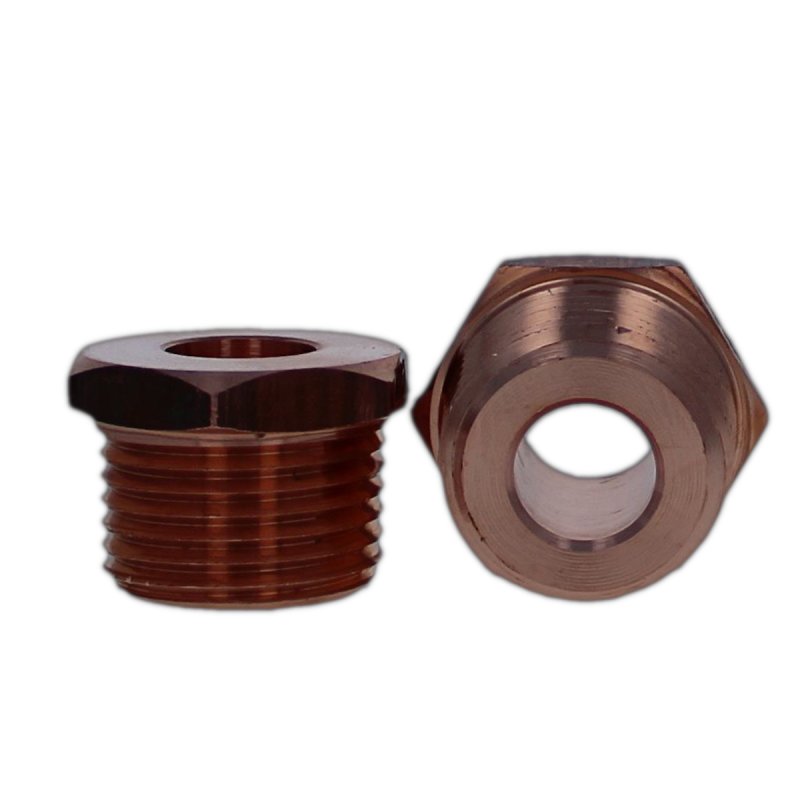

18-748-06 CMW

Part #: 290-18-748-06

Request 3D Model

Request 3D Model


Electrode Adapters are used to improve electrode holder life and flexibility by allowing the adapter to be replaced when the taper wears out.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 0.750 IN
  • The hex width is 1.000 IN
  • The part mounts via 5/8 - 14 NPT threads.
  • The part holds a subcomponent via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The taper or thread length is 0.562 IN

Specifications

RWMA Material Type RWMA Class 2
Engagement to Holder 5/8 - 14 NPT
RWMA Taper 4RW
Overall Length 0.75000
Hex Width 1.00000
Thread Length 0.5625
Body Length 0.1875
Unit of Measure IN
Thread Type Male
