18-7465-07 CMW

Part #: 290-18-7465-07

Request 3D Model

Request 3D Model

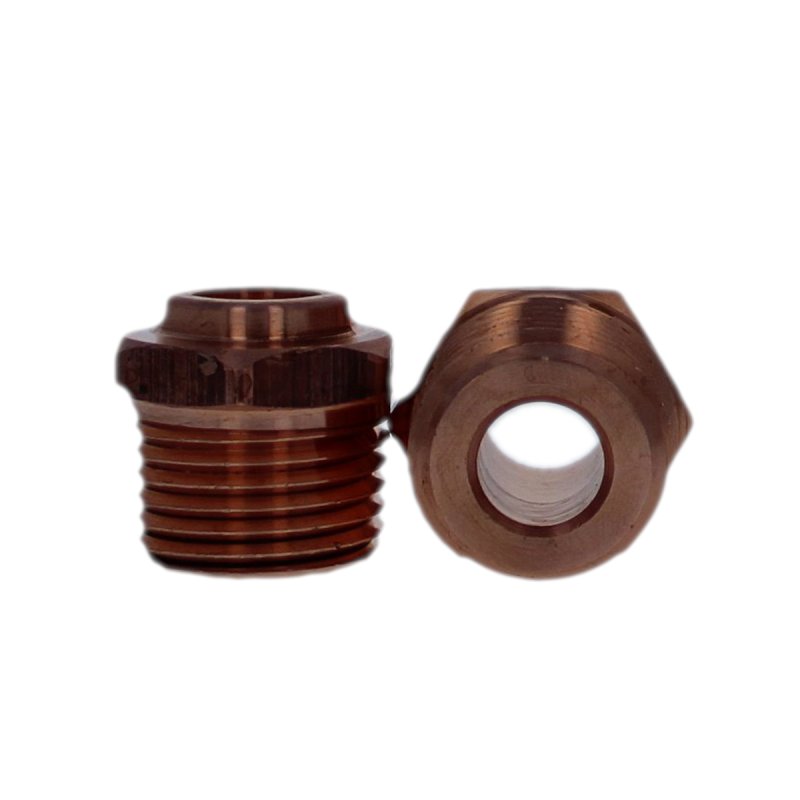

Electrode Adapters are used to improve electrode holder life and flexibility by allowing the adapter to be replaced when the taper wears out.

RMWA Class 2 material is high conductivity and high strength alloy recommended for structural, current carrying secondary components and electrode holders. This is a heat treatable alloy used in the fully heat treated condition.

  • The overall length is 0.875 IN
  • The hex width is 0.875 IN
  • The part mounts via 1/2 - 14 NPT threads.
  • The part holds a subcomponent via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
  • The taper or thread length is 0.562 IN

Specifications

RWMA Material Type RWMA Class 2
Engagement to Holder 1/2 - 14 NPT
RWMA Taper 5RW Cap Taper
Overall Length 0.87500
Hex Width 0.87500
Thread Length 0.5625
Body Length 0.2500
Unit of Measure IN
Thread Type Male
