MP3049 CMW

Part #: 263-MP3049

Request 3D Model

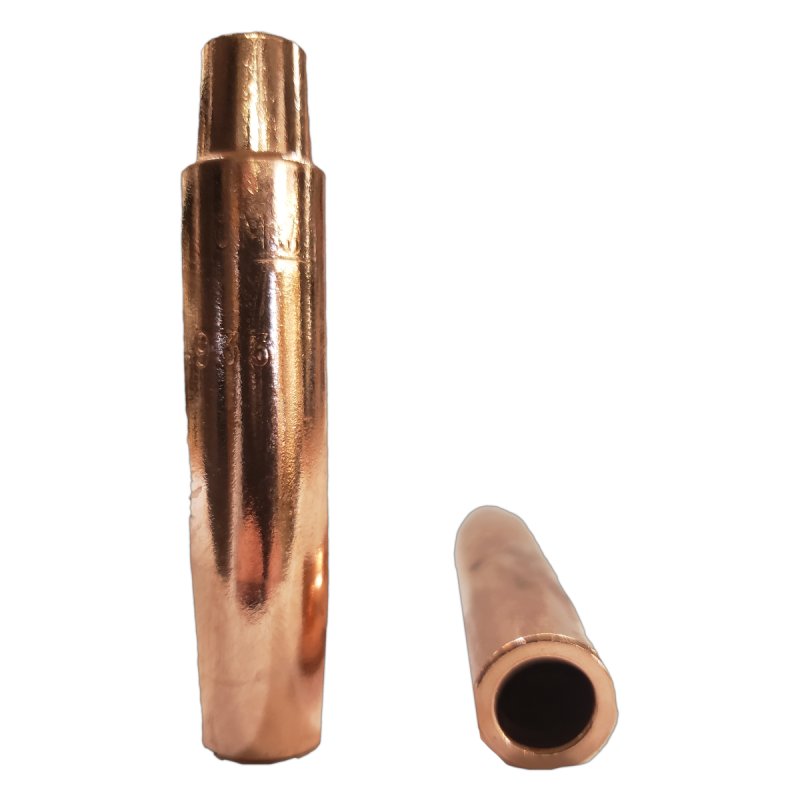

Straight shanks for female caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 2.89 IN
The outside diameter is 0.750 IN
The part mounts via a 6RW standard taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
The part holds a subcomponent via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
The assembled length is 3.50 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Base Taper [T]	6RW
RWMA Cap Taper [M]	6RW Cap Taper
Overall Length [A]	2.89000
Outer Diameter	0.75000
Inner Diameter	0.43750
Assembled Length [B]	3.5000
Unit of Measure	IN
