MP30422 CMW

Part #: 263-MP30422

Request 3D Model

Request 3D Model

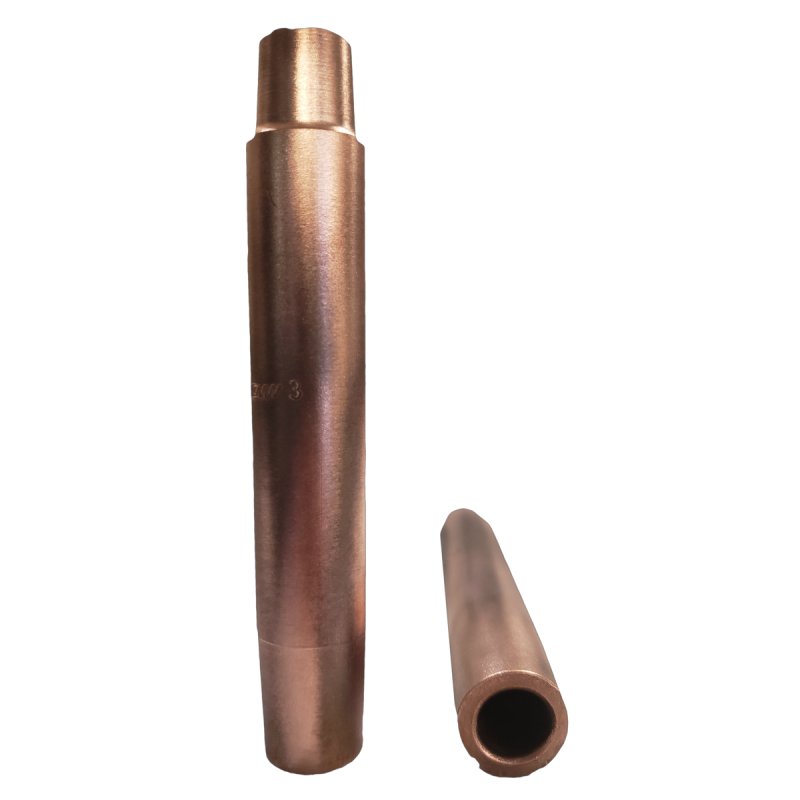

Straight shanks for female caps are a cost effective way to utilize caps on any standard rocker arm, press type, robot or bench mounted machine. The shank has a water hole through the entire part to ensure the cap is properly cooled.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 4.39 IN
  • The outside diameter is 0.750 IN
  • The part mounts via a 6RW standard taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The part holds a subcomponent via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The assembled length is 5.00 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Base Taper [T] 6RW
RWMA Cap Taper [M] 6RW Cap Taper
Overall Length [A] 4.39000
Outer Diameter 0.75000
Inner Diameter 0.43750
Assembled Length [B] 5.0000
Unit of Measure IN
