32214-17-45 CMW

Part #: 267-32214-17-45

Request 3D Model

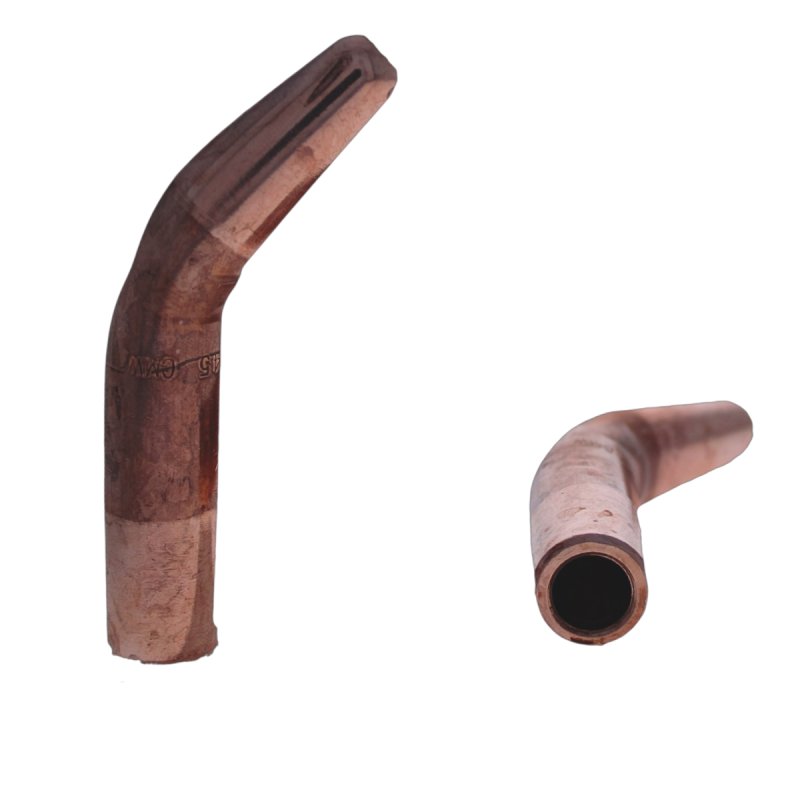

Standard Single Bend tips are an economic solution to weld in a tight area or hard to reach area such as a flange or corner.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 3.000 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.25 IN
The offset is 1.063 IN
The engagement angle is 45 Degrees

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	5RW
Nose Type	A
Overall Length [A]	3.00000
Outer Diameter [B]	0.62500
Welding Face Dia. [C]	0.25
Offset [H]	1.0630
Water Hole Dia. [E]	0.37500
Nose Length	1.1250
Unit of Measure	IN
Bend Angle (Deg) [D]	45.0
