3215-10-45 CMW

Part #: 267-3215-10-45

Request 3D Model

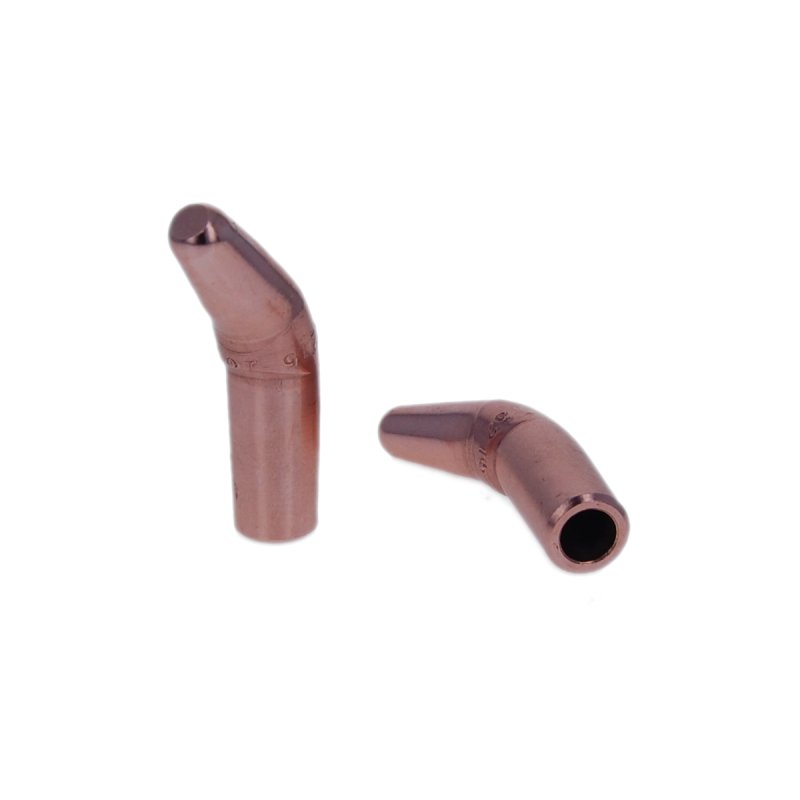

Standard Single Bend tips are an economic solution to weld in a tight area or hard to reach area such as a flange or corner.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.688 IN
The outside diameter is 0.482 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.188 IN
The offset is 0.625 IN
The engagement angle is 45 Degrees

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	4RW
Nose Type	A
Overall Length [A]	1.68800
Outer Diameter [B]	0.48200
Welding Face Dia. [C]	0.188
Offset [H]	0.6250
Water Hole Dia. [E]	0.28100
Nose Length	0.7500
Unit of Measure	IN
Bend Angle (Deg) [D]	45.0
