Part #: 2-MGD255-1501
Request 3D Model

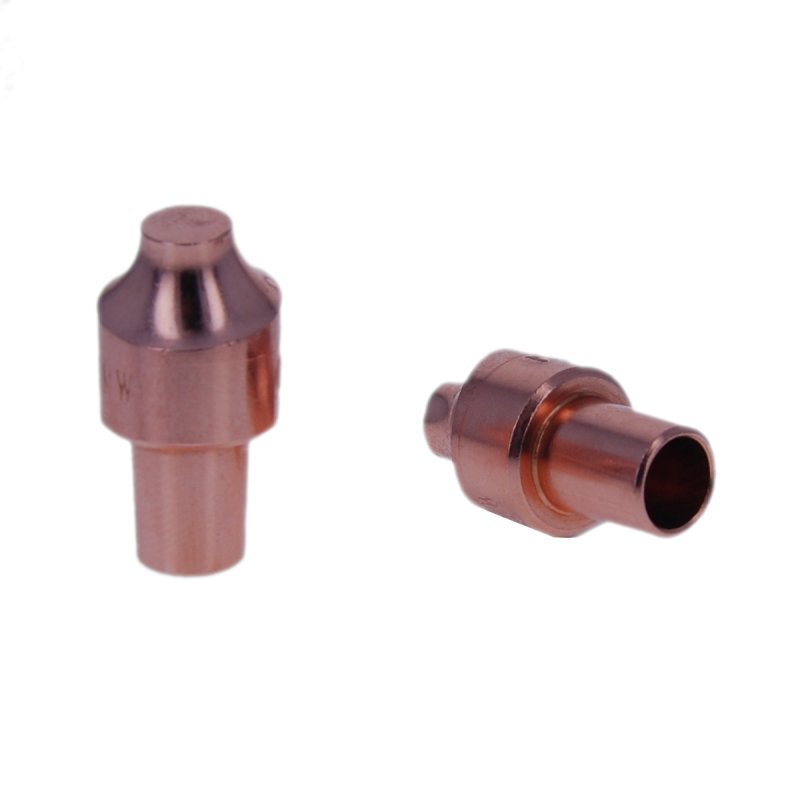

Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 1.2500 IN
- The outside diameter is 0.625 IN
- The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The G nose is a patented design for welding galvanized steels. It does not stick on the first weld and increases tip life by 10 times before redressing by rolling away the brassing on the weld face. The GCAP also consumes up 25% less electric power. (Patents 19,954,687; 5,015,816; 5,126,528)
- The weld face is 0.313 IN
- The engagement angle is 15 Degrees

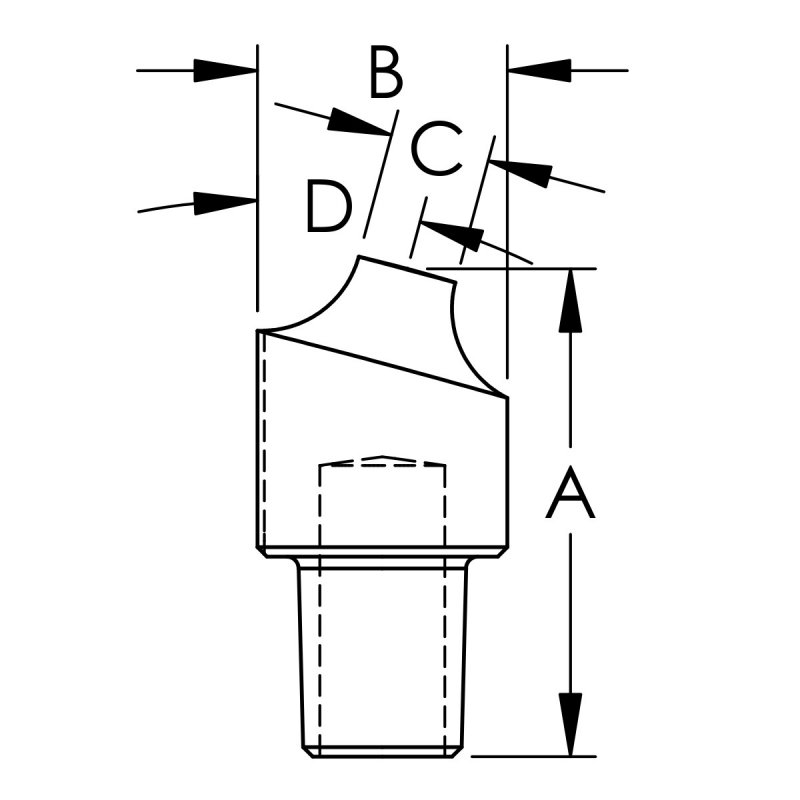

|RWMA Material Type||RWMA Class 2 - C18200|
|RWMA Taper [T]||5RW Cap Taper|
|Overall Length [A]||1.25000|
|Outer Diameter [B]||0.62500|
|Welding Face Dia. [C]||0.313|
|Unit of Measure||IN|
|Nose Engagement Angle [D]||15.0|
