MGD244 CMW

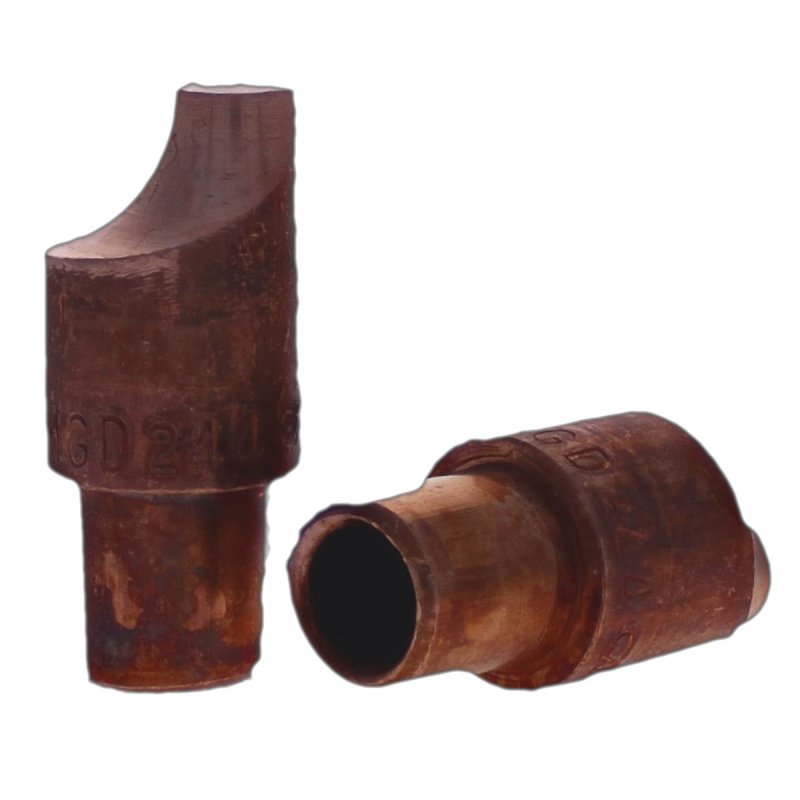

Part #: 2-MGD244

Request 3D Model

Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.1250 IN
The outside diameter is 0.500 IN
The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The G nose is a patented design for welding galvanized steels. It does not stick on the first weld and increases tip life by 10 times before redressing by rolling away the brassing on the weld face. The GCAP also consumes up 25% less electric power. (Patents 19,954,687; 5,015,816; 5,126,528)
The weld face is 0.25 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	4RW Cap Taper
Nose Type	G
Overall Length [A]	1.12500
Outer Diameter [B]	0.50000
Welding Face Dia. [C]	0.25
Unit of Measure	IN
