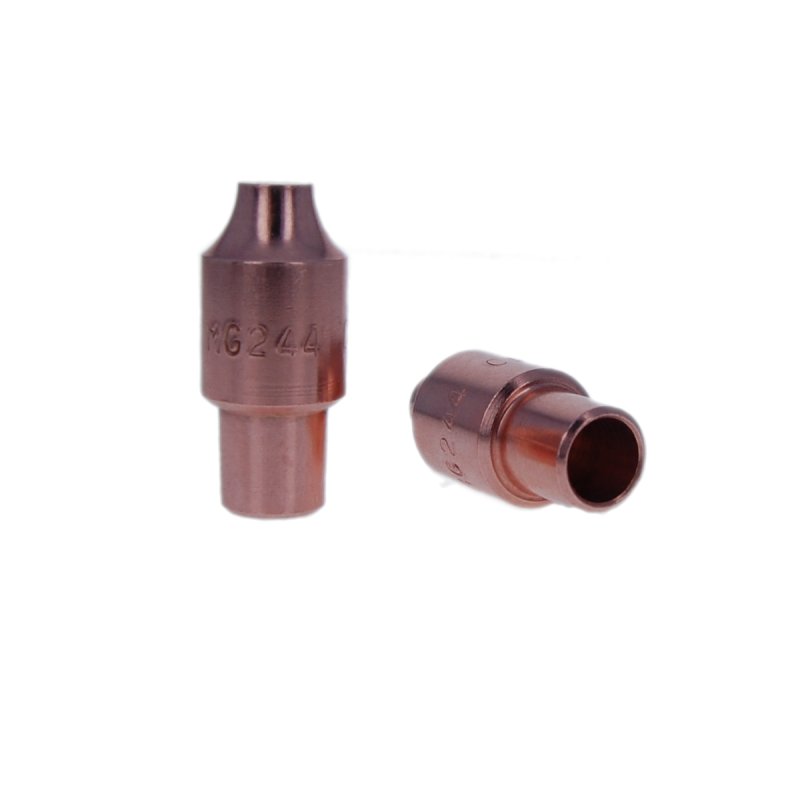

Part #: 2-MG244
Request 3D Model
Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 1.1250 IN
- The outside diameter is 0.500 IN
- The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The G nose is a patented design for welding galvanized steels. It does not stick on the first weld and increases tip life by 10 times before redressing by rolling away the brassing on the weld face. The GCAP also consumes up 25% less electric power. (Patents 19,954,687; 5,015,816; 5,126,528)
- The weld face is 0.25 IN
|RWMA Material Type||RWMA Class 2 - C18200|
|RWMA Taper [T]||4RW Cap Taper|
|Overall Length [A]||1.12500|
|Outer Diameter [B]||0.50000|
|Welding Face Dia. [C]||0.25|
|Unit of Measure||IN|
