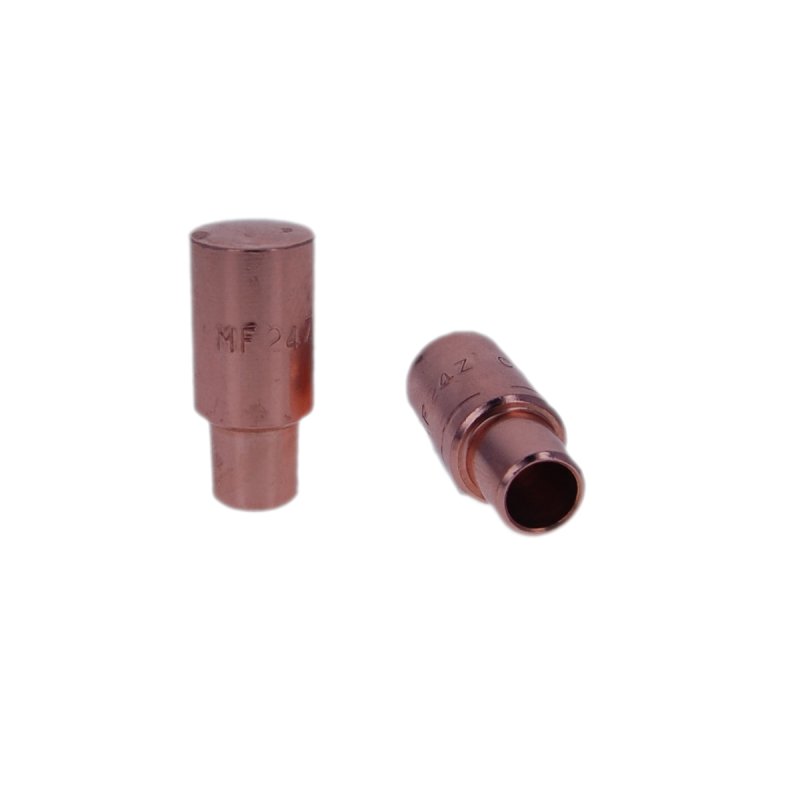

MF24Z CMW

Part #: 2-MF24Z

Request 3D Model

Request 3D Model


Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

  • The overall length is 1.1250 IN
  • The outside diameter is 0.500 IN
  • The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
  • The weld face is 2 inch radius

Specifications

RWMA Material Type RWMA Class 2 - C18150
RWMA Taper [T] 4RW Cap Taper
Nose Type F
Overall Length [A] 1.12500
Outer Diameter [B] 0.50000
Welding Face Dia. [C] 2 inch radius
Unit of Measure IN
