ME26 CMW

Part #: 2-ME26

Request 3D Model

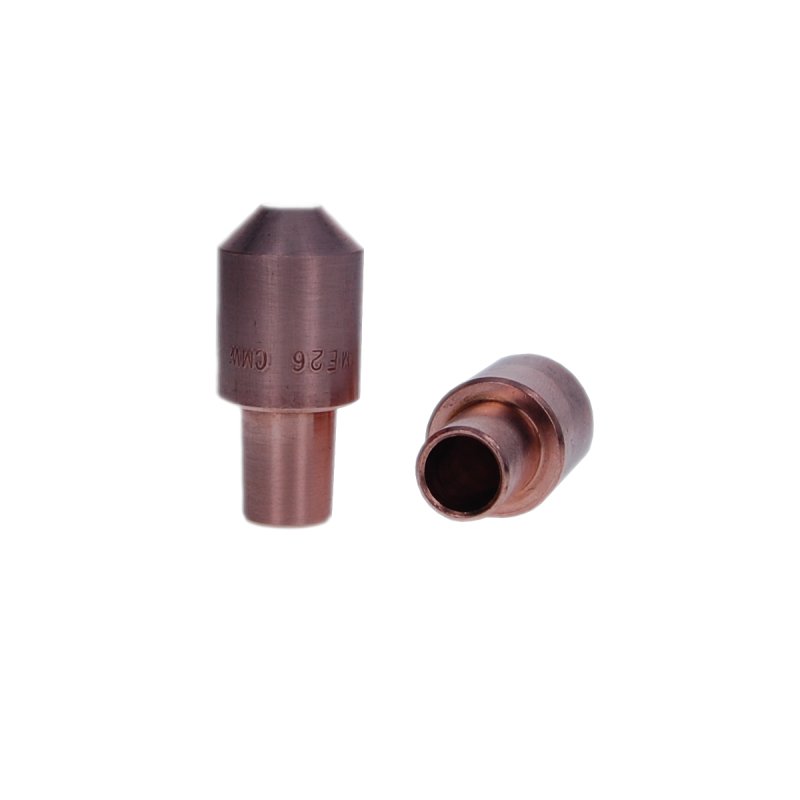

Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.6250 IN
The outside diameter is 0.750 IN
The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
The E nose or Truncated face tip is an efficient design that does not trap weld flash on the face and may reduce mushrooming.
The weld face is 0.313 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	6RW Cap Taper
Nose Type	E
Overall Length [A]	1.62500
Outer Diameter [B]	0.75000
Welding Face Dia. [C]	0.313
Unit of Measure	IN
Offset / Truncated Angle [D]	45.0
