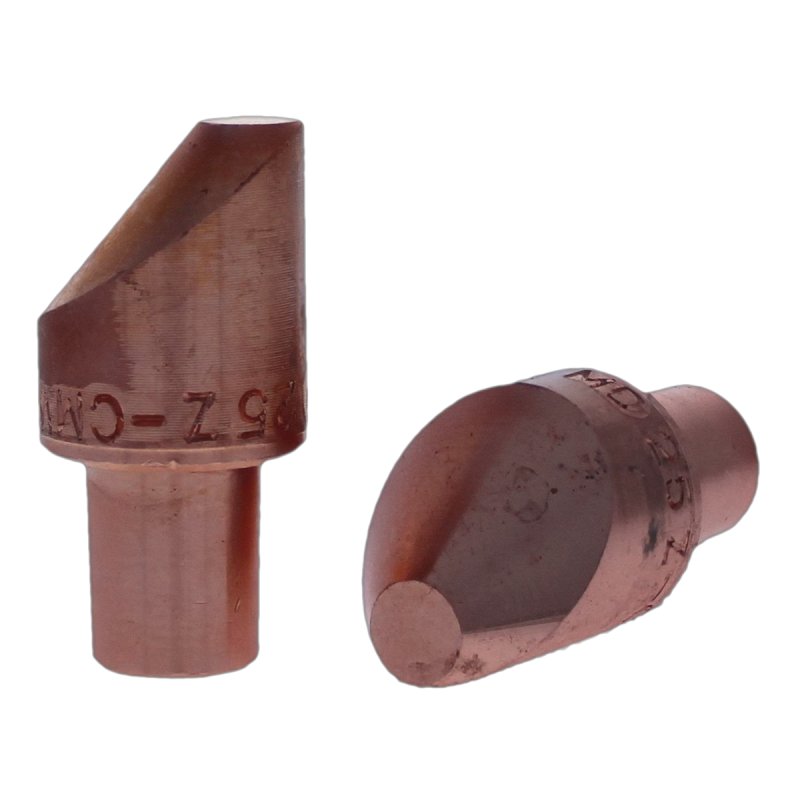

Part #: 2-MD25Z
Request 3D Model
Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.
RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.
- The overall length is 1.2500 IN
- The outside diameter is 0.625 IN
- The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The D nose or Offest face tip is used for welds in tight spaces typically on a flange or tight corner. It reqiures manual orientation during setup.
- The weld face is 0.25 IN
|RWMA Material Type||RWMA Class 2 - C18150|
|RWMA Taper [T]||5RW Cap Taper|
|Overall Length [A]||1.25000|
|Outer Diameter [B]||0.62500|
|Welding Face Dia. [C]||0.25|
|Unit of Measure||IN|
|Offset / Truncated Angle [D]||40.0|
