MD14Z CMW
Part #: 2-MD14Z
Request 3D Model

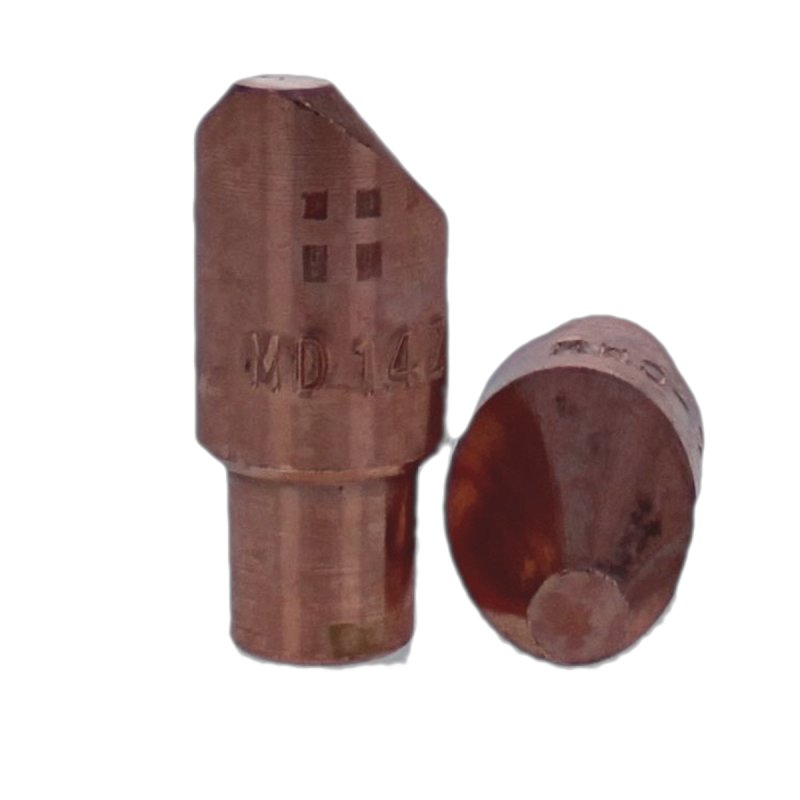

Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 1.1250 IN
- The outside diameter is 0.500 IN
- The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The D nose or Offest face tip is used for welds in tight spaces typically on a flange or tight corner. It reqiures manual orientation during setup.
- The weld face is 0.188 IN
Specifications
| RWMA Material Type | RWMA Class 1 - C15000 |
|---|---|
| RWMA Taper [T] | 4RW Cap Taper |
| Nose Type | D |
| Overall Length [A] | 1.12500 |
| Outer Diameter [B] | 0.50000 |
| Welding Face Dia. [C] | 0.188 |
| Unit of Measure | IN |
| Offset / Truncated Angle [D] | 40.0 |
