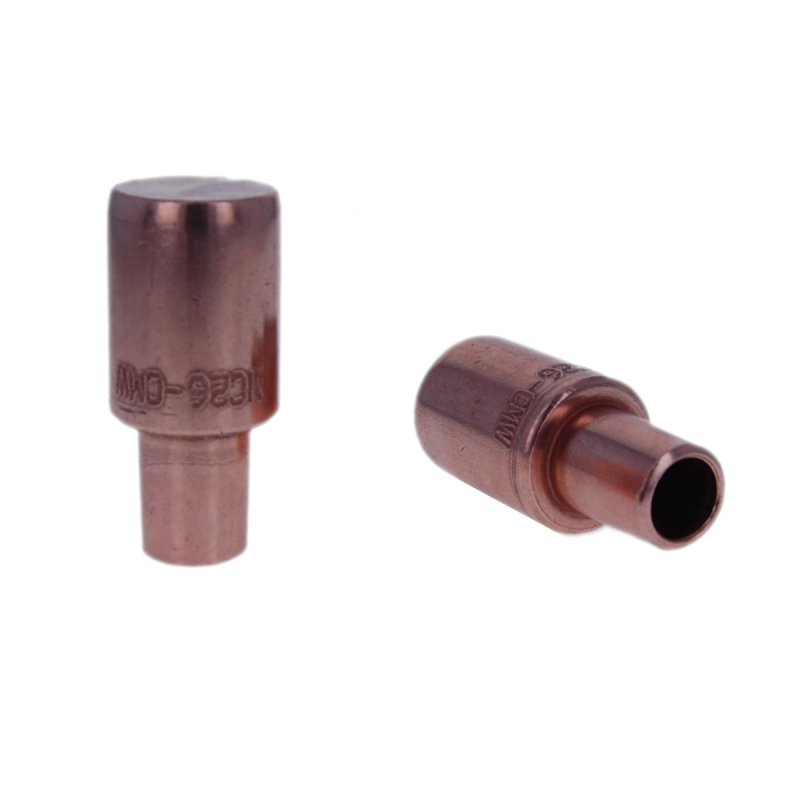

Part #: 2-MC26Z
Request 3D Model
Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.
RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.
- The overall length is 1.6250 IN
- The outside diameter is 0.750 IN
- The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
- The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
- The weld face is 0.75 IN
|RWMA Material Type||RWMA Class 2 - C18150|
|RWMA Taper [T]||6RW Cap Taper|
|Overall Length [A]||1.62500|
|Outer Diameter [B]||0.75000|
|Welding Face Dia. [C]||0.75|
|Unit of Measure||IN|
