MC25 CMW

Part #: 2-MC25

Request 3D Model

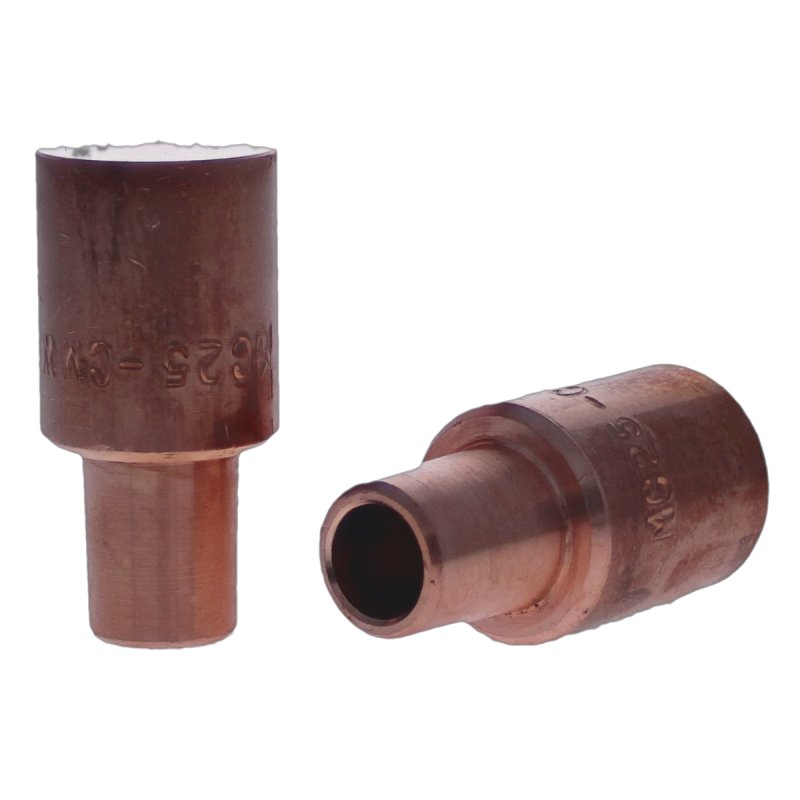

Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.2500 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW cap taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
The weld face is 0.625 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	5RW Cap Taper
Nose Type	C
Overall Length [A]	1.25000
Outer Diameter [B]	0.62500
Welding Face Dia. [C]	0.625
Unit of Measure	IN
