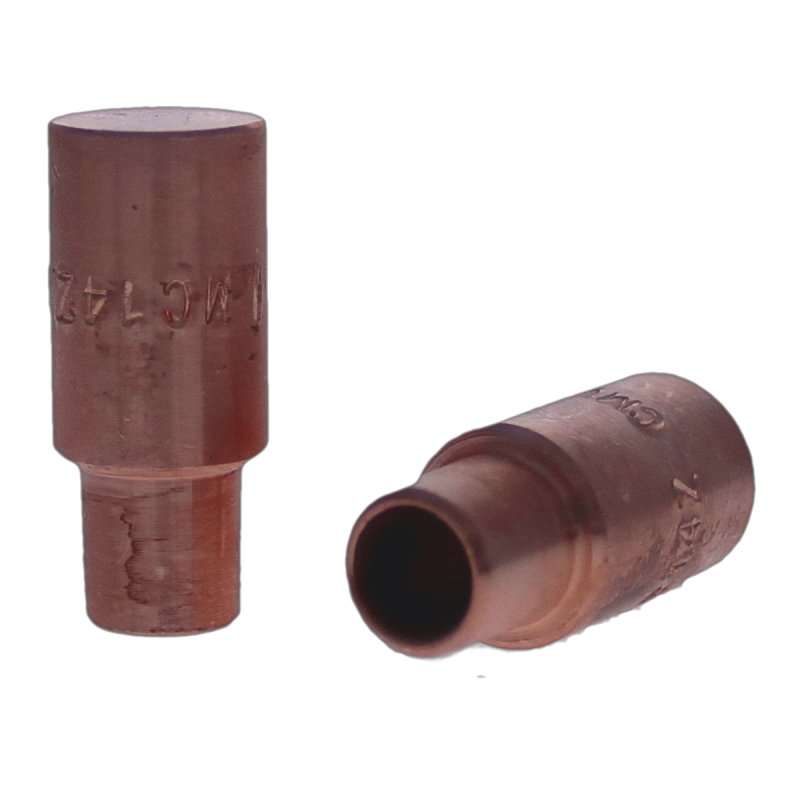

MC14Z CMW

Part #: 2-MC14Z

Request 3D Model

Request 3D Model


Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 1.1250 IN
  • The outside diameter is 0.500 IN
  • The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.5 IN

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 4RW Cap Taper
Nose Type C
Overall Length [A] 1.12500
Outer Diameter [B] 0.50000
Welding Face Dia. [C] 0.5
Unit of Measure IN
