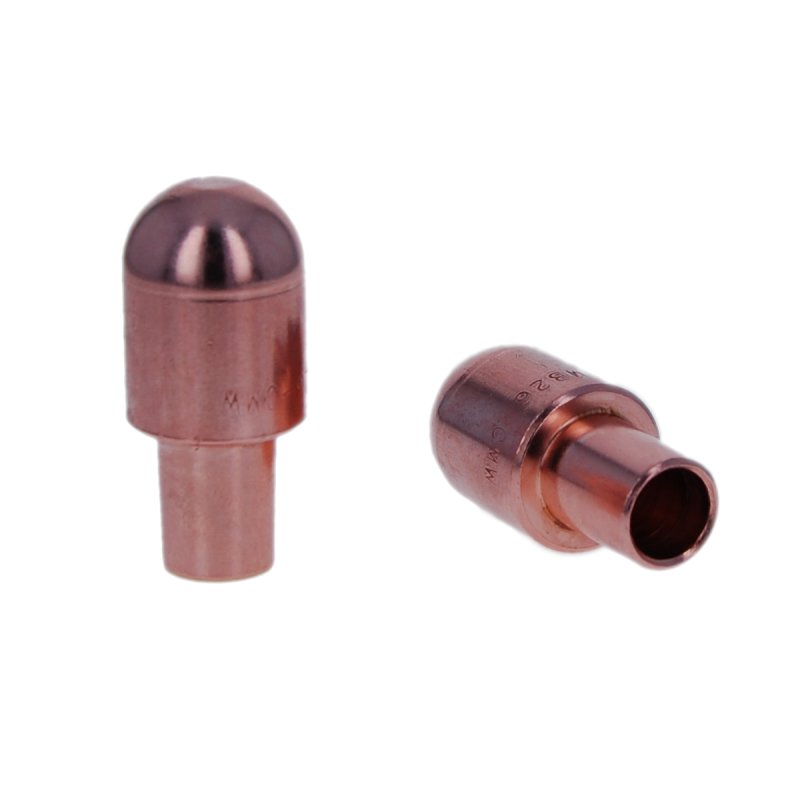

MB26 CMW

Part #: 2-MB26

Request 3D Model

Request 3D Model


Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 1.6250 IN
  • The outside diameter is 0.750 IN
  • The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The B nose or Dome face tip is the most commonly used weldface because the design accomodates modest misalignment problems as contact can still be made on the radius during welding.
  • The weld face is 0.25 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper [T] 6RW Cap Taper
Nose Type B
Overall Length [A] 1.62500
Outer Diameter [B] 0.75000
Welding Face Dia. [C] 0.25
Unit of Measure IN
