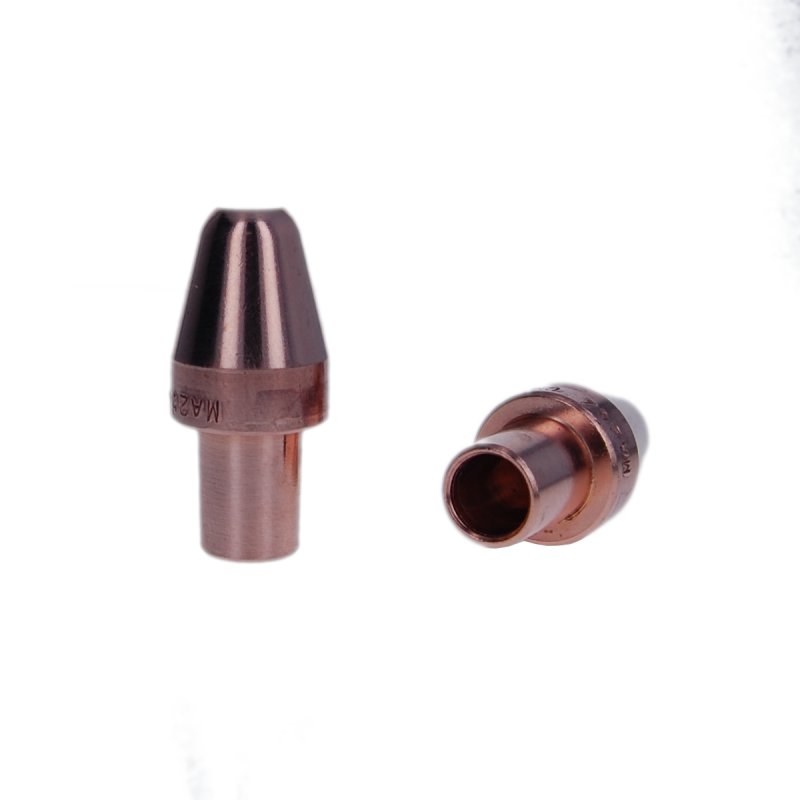

MA26Z CMW

Part #: 2-MA26Z

Request 3D Model

Request 3D Model


Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

  • The overall length is 1.6250 IN
  • The outside diameter is 0.750 IN
  • The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.313 IN

Specifications

RWMA Material Type RWMA Class 2 - C18150
RWMA Taper [T] 6RW Cap Taper
Nose Type A
Overall Length [A] 1.62500
Outer Diameter [B] 0.75000
Welding Face Dia. [C] 0.313
Unit of Measure IN
