MA24 CMW

Part #: 2-MA24

Request 3D Model

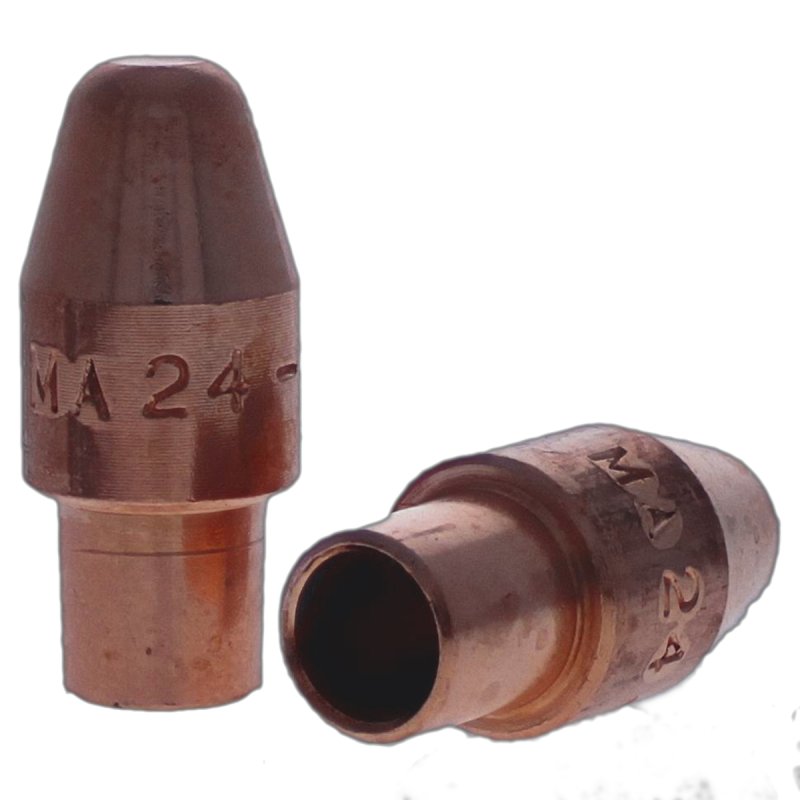

Male caps are a cost effective solution for automated environments because the caps can be changed quickly when the face wears out. The design has superior water flow properties compared to female caps. Thus, males are an ideal choice for high heat applications.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.1250 IN
The outside diameter is 0.500 IN
The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.188 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	4RW Cap Taper
Nose Type	A
Overall Length [A]	1.12500
Outer Diameter [B]	0.50000
Welding Face Dia. [C]	0.188
Unit of Measure	IN
