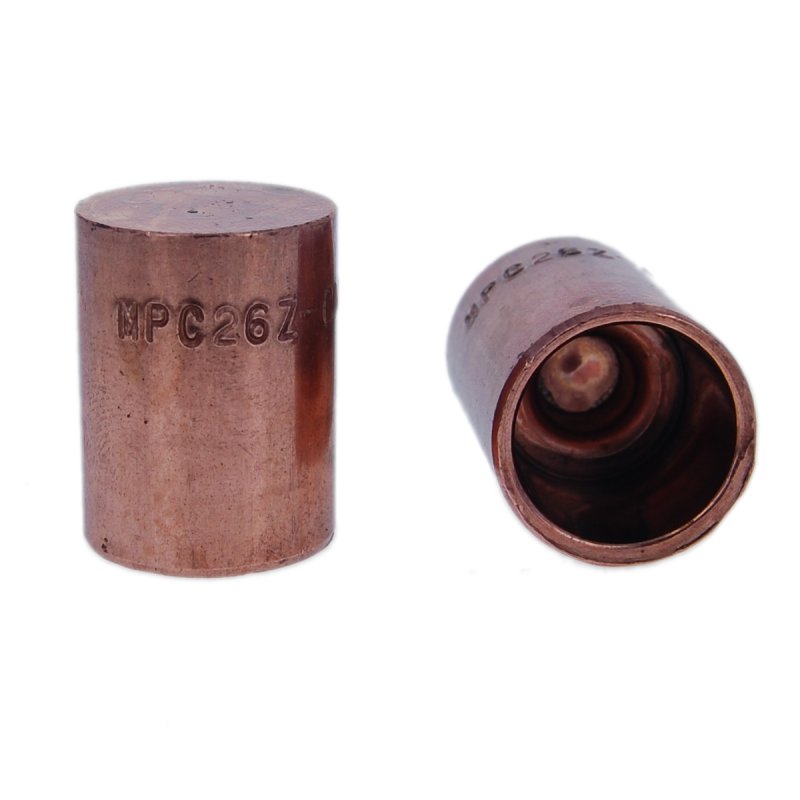

MPC26Z CMW

Part #: 2-MPC26Z

Request 3D Model

Request 3D Model


Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

  • The overall length is 1.0000 IN
  • The outside diameter is 0.750 IN
  • The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
  • The weld face is 0.75 IN

Specifications

RWMA Material Type RWMA Class 2 - C18150
RWMA Taper [T] 6RW Cap Taper
Nose Type C
Overall Length [A] 1.00000
Outer Diameter [B] 0.75000
Welding Face Dia. [C] 0.75
Unit of Measure IN
