MPB26Z CMW

Part #: 2-MPB26Z

Request 3D Model

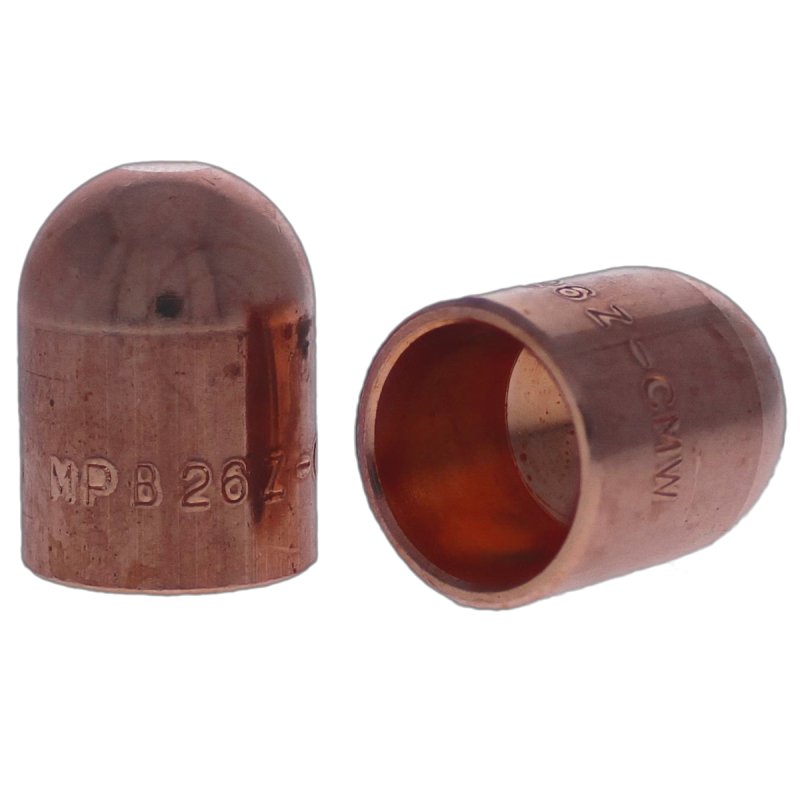

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

The overall length is 1.0000 IN
The outside diameter is 0.750 IN
The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
The B nose or Dome face tip is the most commonly used weldface because the design accomodates modest misalignment problems as contact can still be made on the radius during welding.
The weld face is 0.25 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18150
RWMA Taper [T]	6RW Cap Taper
Nose Type	B
Overall Length [A]	1.00000
Outer Diameter [B]	0.75000
Welding Face Dia. [C]	0.25
Unit of Measure	IN
