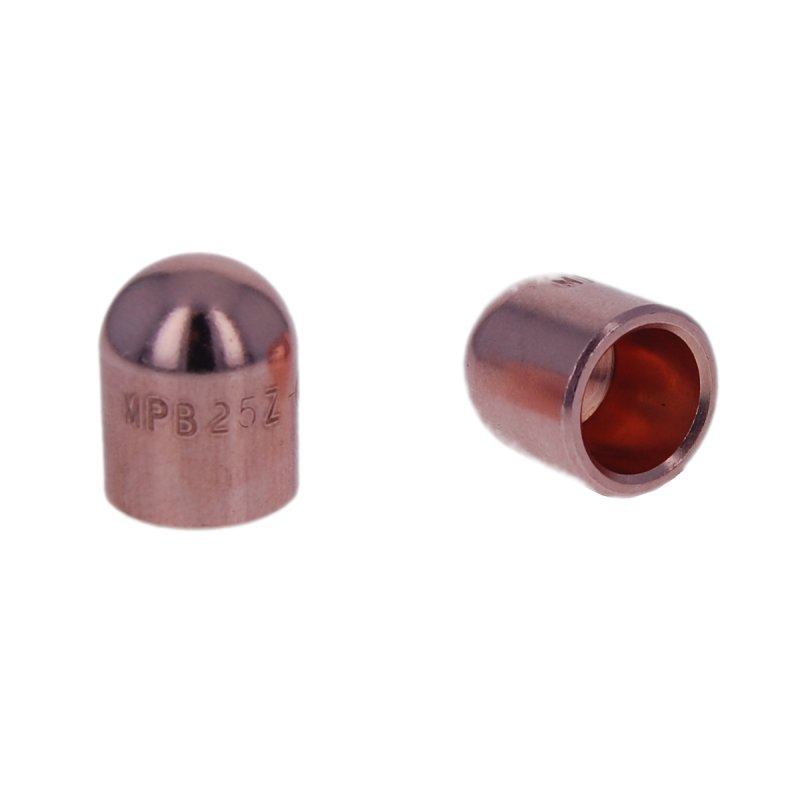

MPB25Z-03 CMW
Part #: 2-MPB25Z-03
Request 3D Model
Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.
RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.
- The overall length is 0.7870 IN
- The outside diameter is 0.625 IN
- The part mounts via a 1:10 Metric-ISO 5821 type taper which is the standard in Europe.
- The B nose or Dome face tip is the most commonly used weldface because the design accomodates modest misalignment problems as contact can still be made on the radius during welding.
- The weld face is .313 inch radius IN
Specifications
| RWMA Material Type | RWMA Class 2 - C18150 |
|---|---|
| RWMA Taper [T] | 1:10 |
| Nose Type | B |
| Overall Length [A] | 0.78700 |
| Outer Diameter [B] | 0.62500 |
| Welding Face Dia. [C] | .313 inch radius |
| Unit of Measure | IN |
