MPA24Z CMW

Part #: 2-MPA24Z

Request 3D Model

Request 3D Model

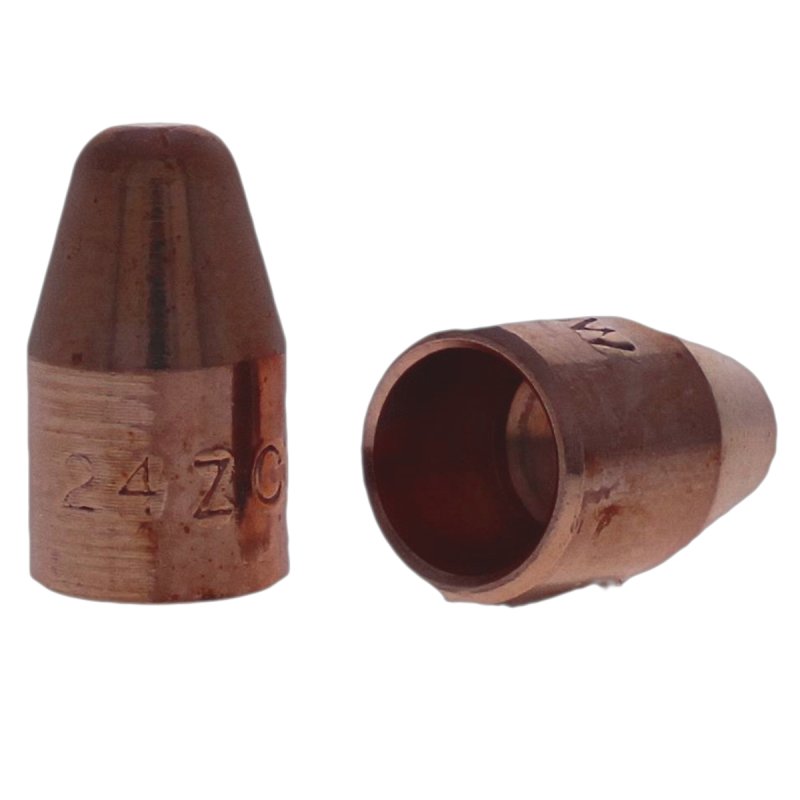

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 2 (C18150) is a copper, chromium, zirconium material recommend for spot welding hot or cold rolled steels. It is often used for galvanized and coated material.

  • The overall length is 0.8400 IN
  • The outside diameter is 0.500 IN
  • The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.188 IN

Specifications

RWMA Material Type RWMA Class 2 - C18150
RWMA Taper [T] 4RW Cap Taper
Nose Type A
Overall Length [A] 0.84000
Outer Diameter [B] 0.50000
Welding Face Dia. [C] 0.188
Unit of Measure IN
