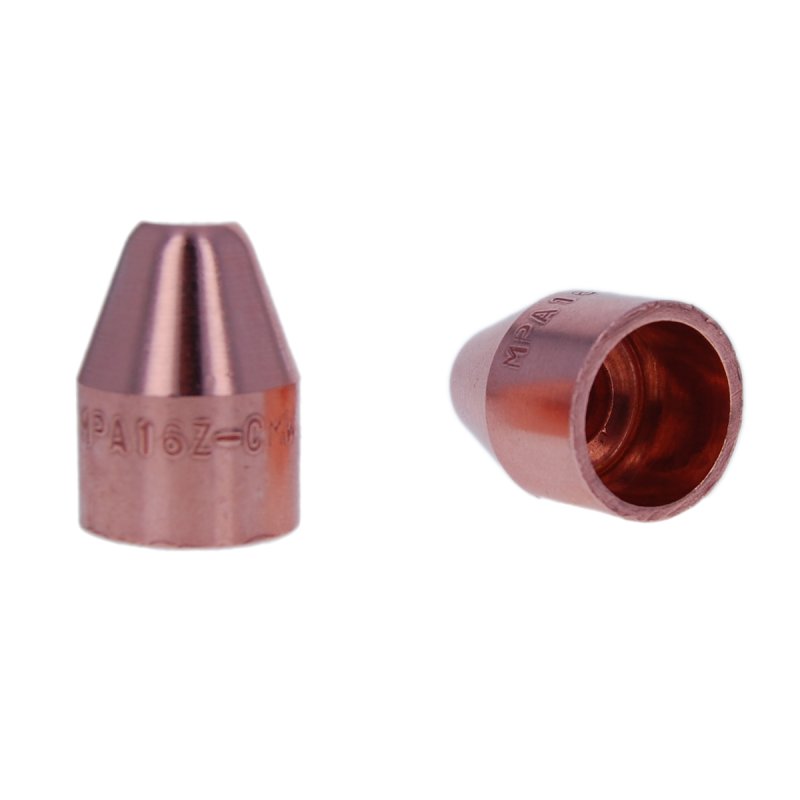

MPA16Z CMW

Part #: 2-MPA16Z

Request 3D Model

Request 3D Model


Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 1.0000 IN
  • The outside diameter is 0.750 IN
  • The part mounts via a 6RW cap taper which is suitable for weld forces ranging between 1,500 to 2,000 pounds of force.
  • The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
  • The weld face is 0.313 IN

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 6RW Cap Taper
Nose Type A
Overall Length [A] 1.00000
Outer Diameter [B] 0.75000
Welding Face Dia. [C] 0.313
Unit of Measure IN
