MPA14Z CMW

Part #: 2-MPA14Z

Request 3D Model

Request 3D Model

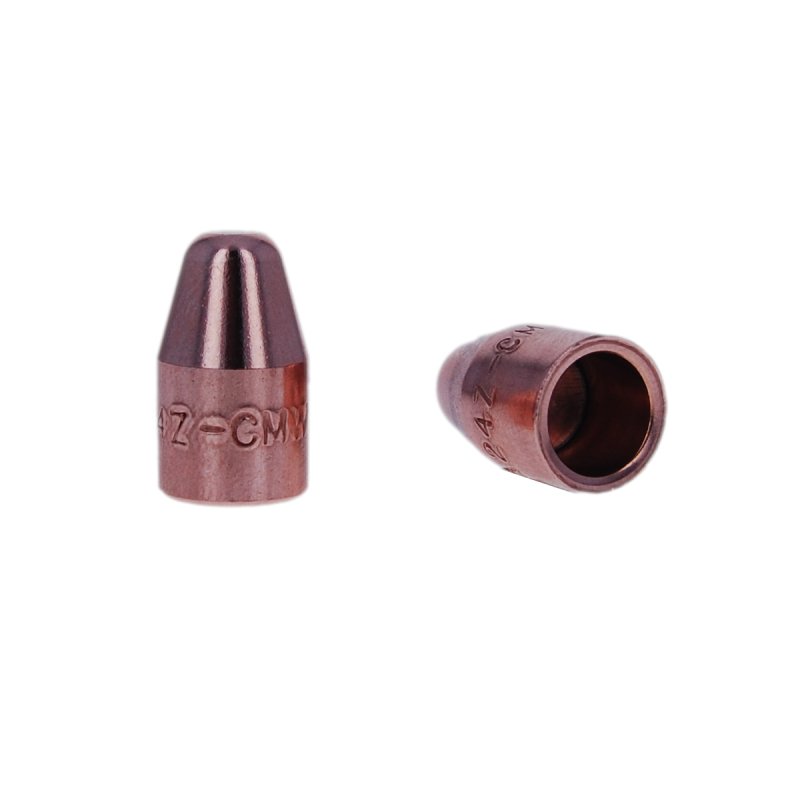

Female caps are a cost effective solution for automated environments because the caps can be quickly changed when the face wears out. Female caps are the most economical cap because they require less copper to manufacture than male caps.

RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.

  • The overall length is 0.8400 IN
  • The outside diameter is 0.500 IN
  • The part mounts via a 4RW cap taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The weld face is 0.188 IN

Specifications

RWMA Material Type RWMA Class 1 - C15000
RWMA Taper [T] 4RW Cap Taper
Nose Type A
Overall Length [A] 0.84000
Outer Diameter [B] 0.50000
Welding Face Dia. [C] 0.188
Unit of Measure IN
