16-3030 CMW

Part #: 286-16-3030

Request 3D Model

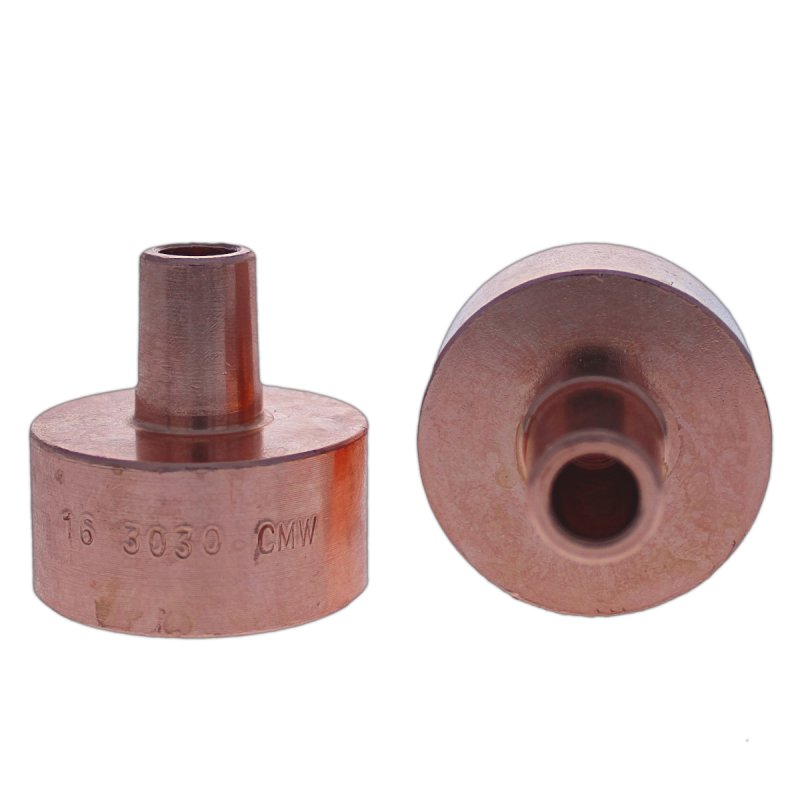

Backup electrodes are have a large weldface typically used for cosmetic welds or projection welds. The large weld face can used for heat balancing when welding a stackup with different material thicknesses.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.250 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The weld face is 1.25 IN

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper	4RW
Overall Length	1.25000
Weld Face Dimension	1.25
Water Hole Dia.	0.28100
Water Hole Depth	0.875
Body Length	0.6250
Taper Length	0.6250
Unit of Measure	IN
