16-3020 CMW
Part #: 286-16-3020
Request 3D Model

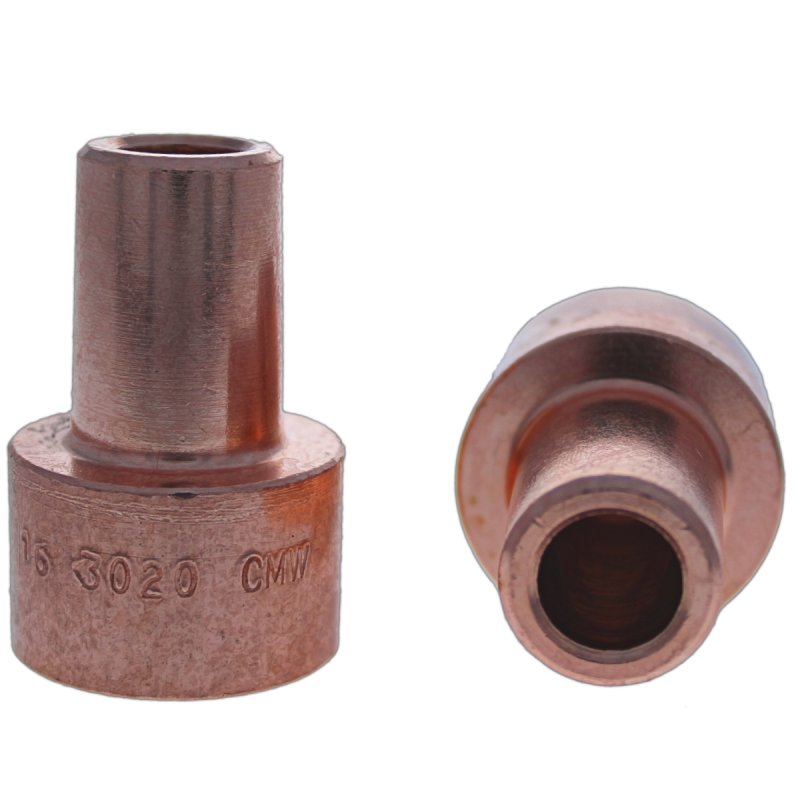

Backup electrodes are have a large weldface typically used for cosmetic welds or projection welds. The large weld face can used for heat balancing when welding a stackup with different material thicknesses.
RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.
- The overall length is 1.500 IN
- The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
- The weld face is 1 IN
Specifications
RWMA Material Type | RWMA Class 2 - C18200 |
---|---|
RWMA Taper | 5RW |
Overall Length | 1.50000 |
Weld Face Dimension | 1 |
Water Hole Dia. | 0.37500 |
Water Hole Depth | 1.125 |
Body Length | 0.6250 |
Taper Length | 0.8750 |
Unit of Measure | IN |
