16-3010 CMW

Part #: 286-16-3010

Request 3D Model

Request 3D Model

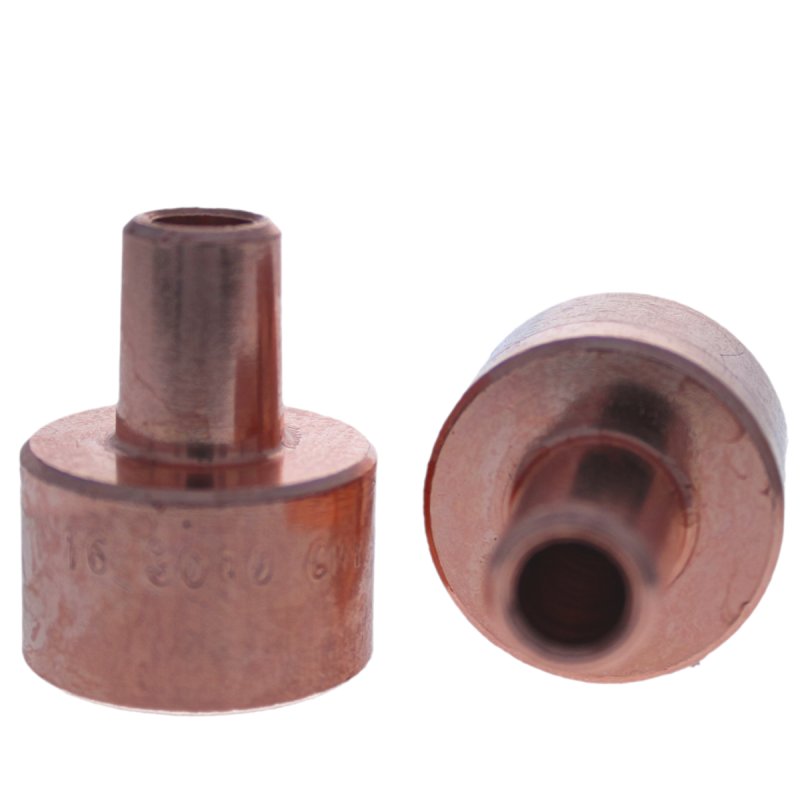

Backup electrodes are have a large weldface typically used for cosmetic welds or projection welds. The large weld face can used for heat balancing when welding a stackup with different material thicknesses.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

  • The overall length is 1.250 IN
  • The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
  • The weld face is 1 IN

Specifications

RWMA Material Type RWMA Class 2 - C18200
RWMA Taper 4RW
Overall Length 1.25000
Weld Face Dimension 1
Water Hole Dia. 0.28100
Water Hole Depth 0.875
Body Length 0.6250
Taper Length 0.6250
Unit of Measure IN
