16-950065-01 CMW
Part #: 295-16-950065-01
Request 3D Model

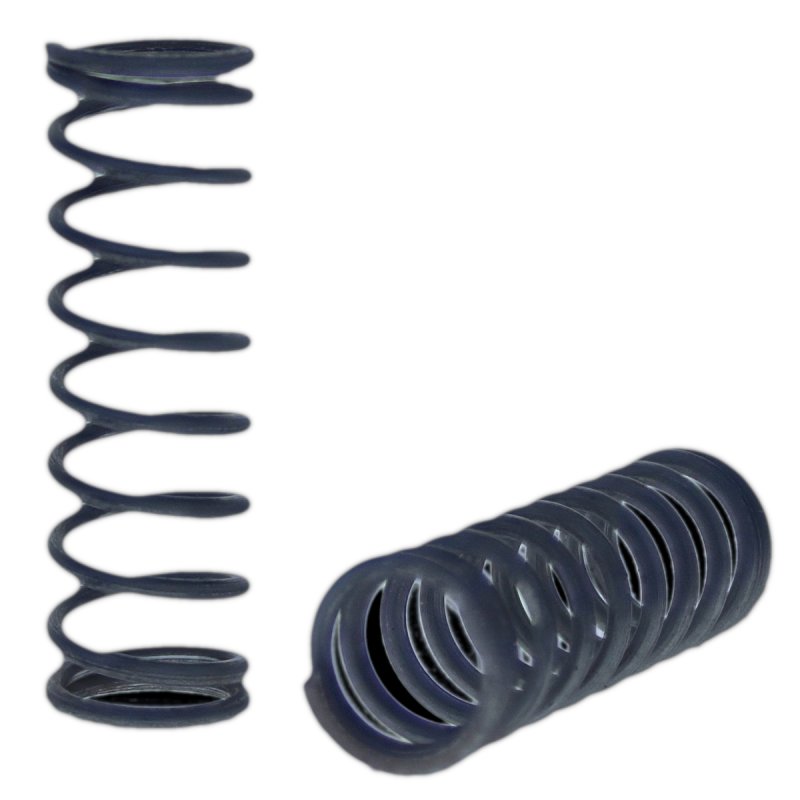

Spring for the Chameleon Max Life Nut Welding Electrodes. The spring allows the weld pin to be compressed when it makes contact with the upper electrode. This prevents damage to the pin and extends the life of the part.
The part is made from zinc coated steel.
- The part length is 1.50 IN
- The outside diameter of the part is 0.48 IN
Specifications
| Material | Zinc plated steel |
|---|---|
| Spring Rate (K) | 15.84 |
| Overall Length | 1.50000 |
| Outside Diameter | 0.48000 |
| Unit of Measure | IN |
