16-953220 CMW
Part #: 278-16-953220
Request 3D Model
Chameleon Sleeves are a component of the Chameleon Stud Electrode for pojection welding studs. The high weare resistance insulated sleeves protect the threads during the weld sequence.
Steel part with a non-condutive CVD coating that extends the life of part in high volume, automated applications.
- The overall length is 1.485 IN
- The outside diameter is 0.367 IN
- The ID diameter of the insulated sleeve is 0.220 IN
- The part is desinged for #12 studs
Specifications
| Material | CVD Coated Steel |
|---|---|

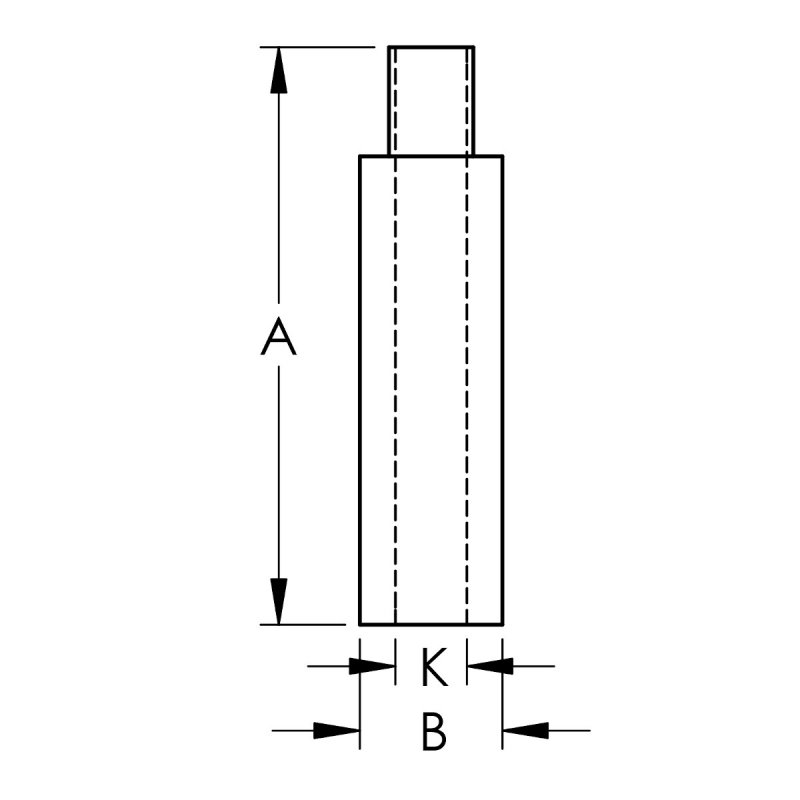

| Overall Length [A] | 1.48500 |
| Outside Diameter [B] | 0.36700 |
| Inside Diameter [K] | 0.22000 |
| For Stud Size | #12 |
| Unit of Measure | IN |
