Body

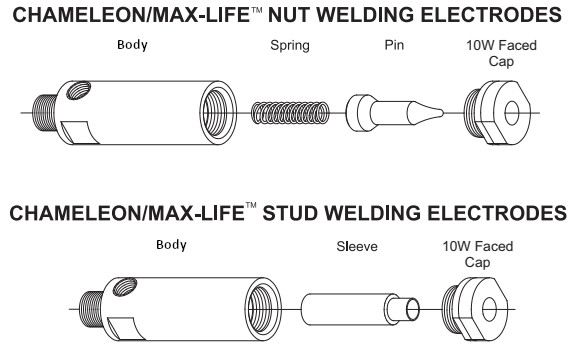

CMW Chameleon Nut and Stud Electrodes Exploded View

Chameleon Max-Life Bodies are designed for flexibility and to reduce tooling costs. The Chameleon Body can be used for stud or nut welding by changing the weld head, pin, spring, and sleeve. Since the tooling does not make contact with the work pieces it has a much longer life than the weld head.

To maximize the life of the tooling, the Chameleon Max-Life Bodies are designed to work with the Nut and Stud Welding Cooling Chamber Cooling Chamber which is installed on the outside diameter of the electrode. It brings cooling water directly to the electrode.

To maximize the life of the Chameleon Electrodes even more, the Nut and Stud Welding Threaded Adpater can be used to mount the threaded versions via 5RW taper. When the taper wears, only the adapter has to be replaced.

PartDescription RWMA Material Type Engagement to Holder Thread for Weld Head Overall Length Outer Diameter Unit of Measure Inlet for Airline
275-16-37325
16-37325 CMW RWMA Class 2 - C18200 5RW 1/2 - 20 2.50000 0.62500 IN 1/16 NPT
275-16-37526
16-37526 CMW RWMA Class 2 - C18200 5/8 - 18 1 - 14 3.00000 1.25000 IN 1/8 NPT
275-16-37825
16-37825 CMW RWMA Class 2 - C18200 5/8 - 18 3/4 - 16 3.00000 1.00000 IN 1/8 NPT
275-16-37826
16-37826 CMW RWMA Class 2 - C18200 5/8 - 18 1 - 14 3.00000 1.25000 IN 1/8 NPT
16-37325 CMW 16-37526 CMW 16-37825 CMW 16-37826 CMW
