5326 CMW

Part #: 252-5326

Request 3D Model

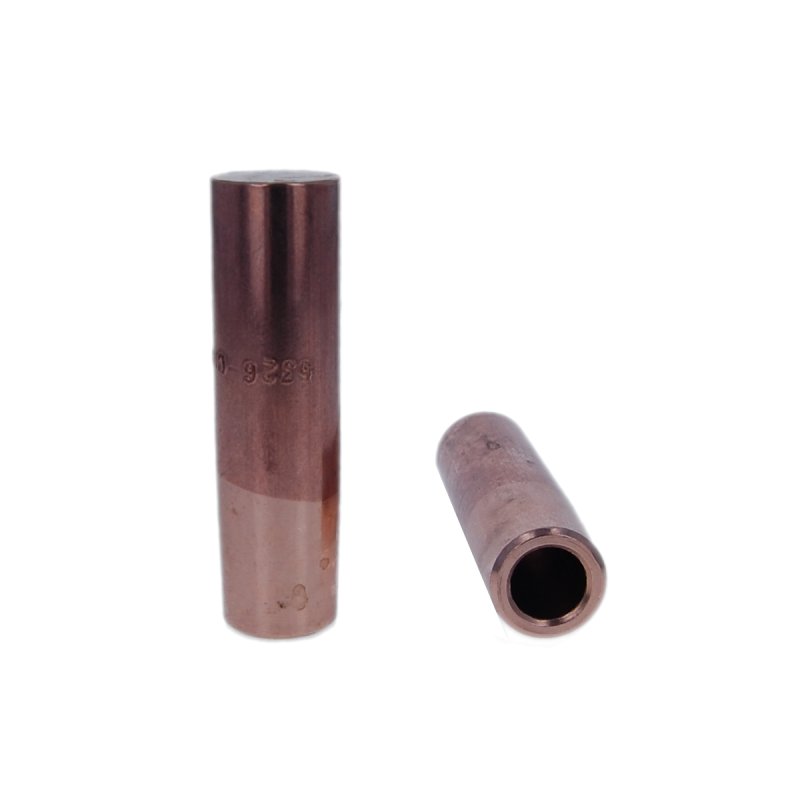

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

The overall length is 2.25 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The C nose of Flat face tip is frequently used as a backup electrode for projection welding, cosmetic welds, or to control heat balancing of the weld by controlling the current density.
The weld face is 0.625 IN

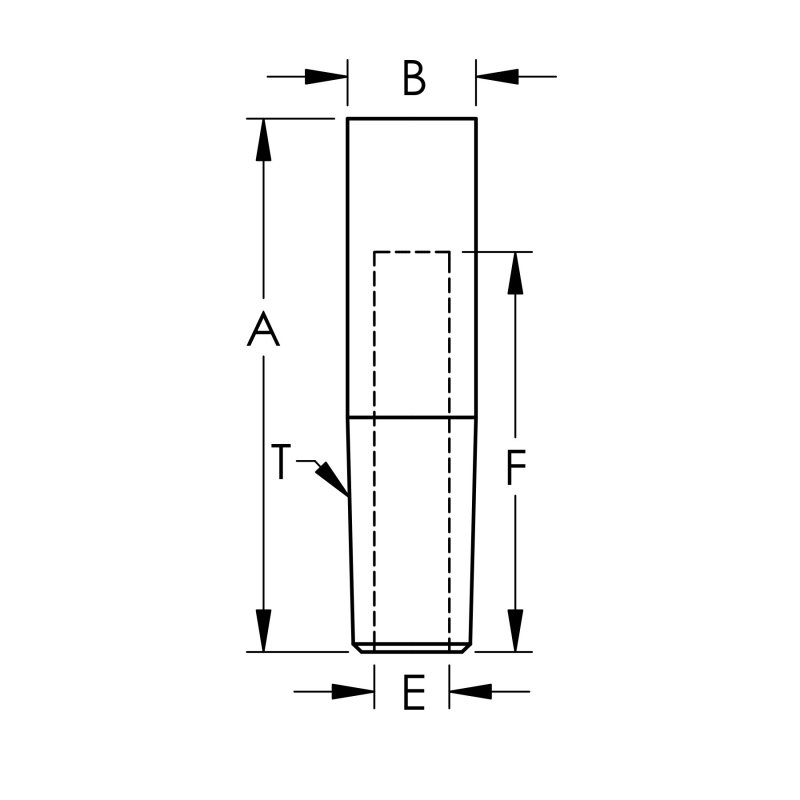

Specifications

RWMA Material Type	RWMA Class 3 - C18000
RWMA Taper [T]	5RW
Nose Type	C
Overall Length [A]	2.25000
Outer Diameter [B]	0.62500
Welding Face Dia. [C]	0.625
Water Hole Dia. [E]	0.37500
Water Hole Depth [F]	1.500
Unit of Measure	IN
