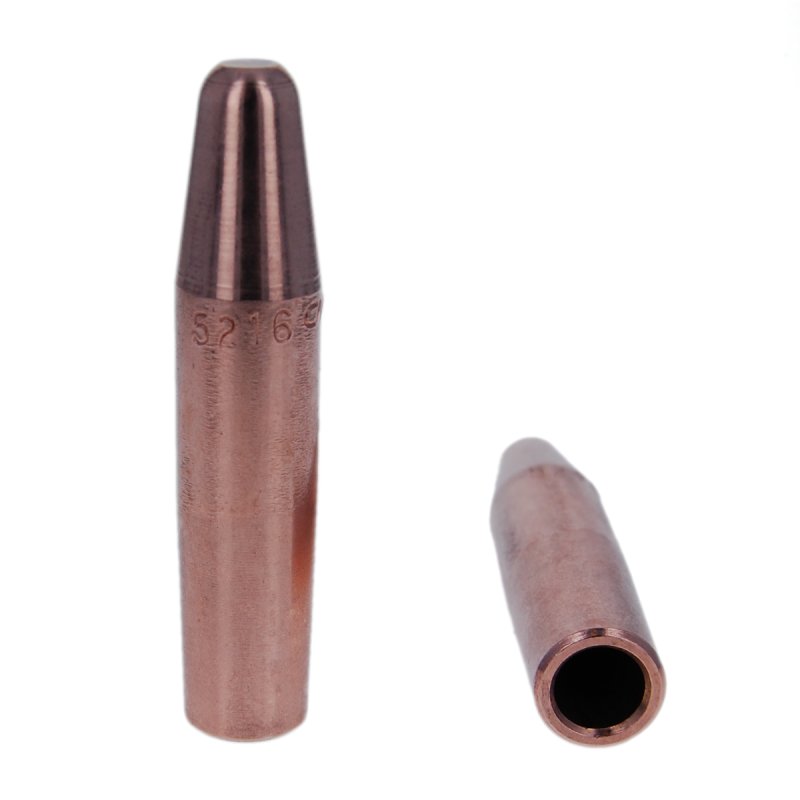

5216 CMW

Part #: 250-5216

Request 3D Model

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RWMA Class 3 (C18000) is a beryllium free resistance welding alloy recommended for spot welding high resistance materials such as stainless steel, Nichrome, Inconel and Monel.

The overall length is 2.25 IN
The outside diameter is 0.482 IN
The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
The A nose or Pointed face tip is a general purpose weld face suitable for most spot welding applications.
The weld face is 0.188 IN

Specifications

RWMA Material Type	RWMA Class 3 - C18000
RWMA Taper [T]	4RW
Nose Type	A
Overall Length [A]	2.25000
Outer Diameter [B]	0.48200
Welding Face Dia. [C]	0.188
Water Hole Dia. [E]	0.28100
Water Hole Depth [F]	1.750
Nose Length [G]	0.7500
Unit of Measure	IN
