16-2491 CMW
Part #: 245-16-2491
Request 3D Model

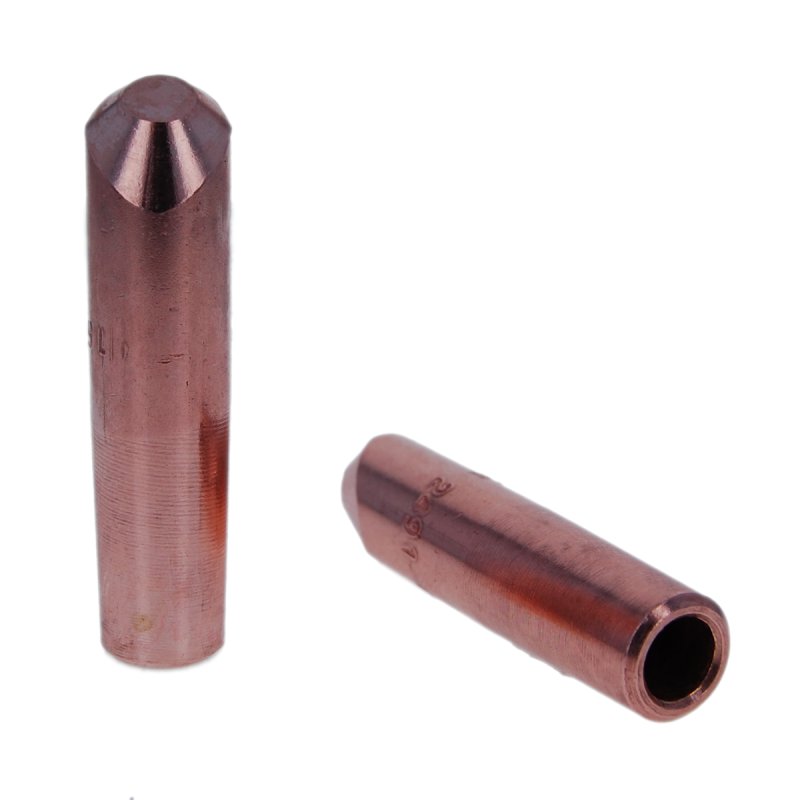

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.
RMWA Class 1 (C15000) material - a copper zirconium material recommended for spot welding coated materials and highly conductive materials such as aluminum, magnesium alloys, brass and bronze.
- The overall length is 2.00 IN
- The outside diameter is 0.482 IN
- The part mounts via a 4RW standard taper which is suitable for weld forces ranging between 200 to 800 pounds of force.
- The H nose or angled offset nose is designed to accommodate the angled offset the electrode holder and ensure the weldface is perpendicular to the workpieces.
- The weld face is 0.250 IN
- The engagement angle is 30 Degrees
Specifications
| RWMA Material Type | RWMA Class 1 - C15000 |
|---|---|
| RWMA Taper [T] | 4RW |
| Nose Type | H |
| Overall Length [A] | 2.00000 |
| Outer Diameter [B] | 0.48200 |
| Welding Face Dia. [C] | .250 |
| Water Hole Dia. [E] | 0.28100 |
| Water Hole Depth [F] | 1.500 |
| Unit of Measure | IN |
| Nose Engagement Angle [D] | 30.0 |
