3523 CMW

Part #: 241-3523

Request 3D Model

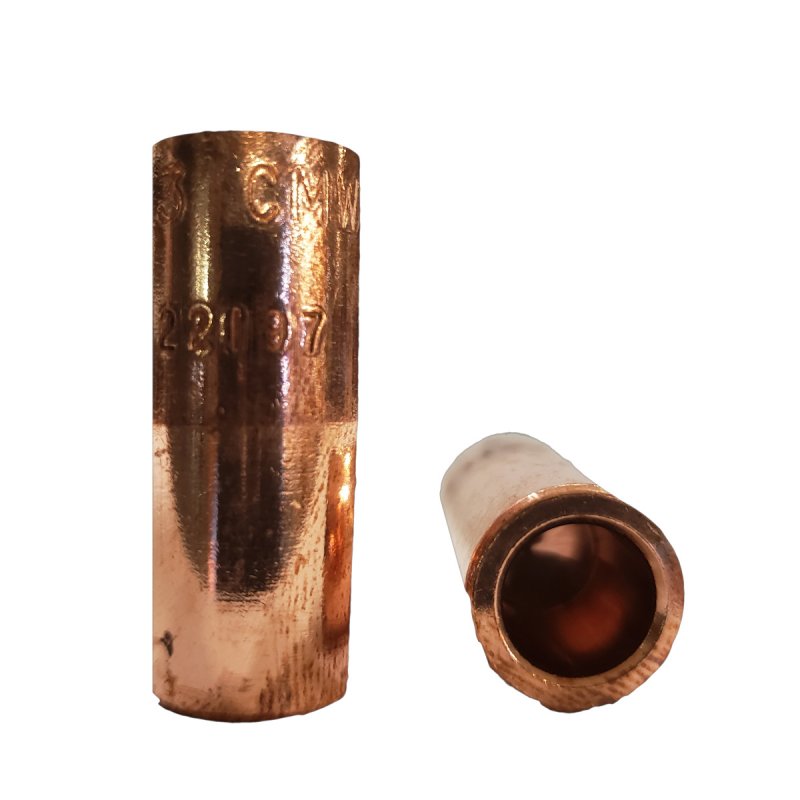

Straight tips are durable and long lasting making them a good choice for use with any standard rocker arm, press type or bench mounted machine. The deep water hole ensures proper cooling of the weld face. They are a great choice for a job shop that run many different products on the same machines.

RMWA Class 2 (C18200) material - a copper, chromium material recommend for high production operations spot welding hot or cold rolled steels, galvanized and coated materials.

The overall length is 1.50 IN
The outside diameter is 0.625 IN
The part mounts via a 5RW standard taper which is suitable for weld forces ranging between 800 to 1500 pounds of force.
The F nose or Radius face tip is typically used for alumium welding because it provides point contact to break through the aluminum oxide layer on the surface while still providing an adequate weldface to manage the current density during welding.
The weld face is 2 inch radius

Specifications

RWMA Material Type	RWMA Class 2 - C18200
RWMA Taper [T]	5RW
Nose Type	F
Overall Length [A]	1.50000
Outer Diameter [B]	0.62500
Welding Face Dia. [C]	2 inch radius
Water Hole Dia. [E]	0.37500
Water Hole Depth [F]	0.750
Unit of Measure	IN
